Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Turn OFF ignition switch and then disconnect the battery negative (-) cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the ECM.

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

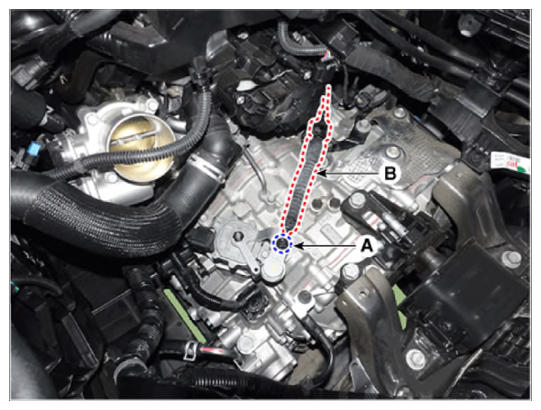

  6. Loosen the nut (A) and then separate the shift cable (B).
    G14714651Courtesy of HYUNDAI MOTOR AMERICA

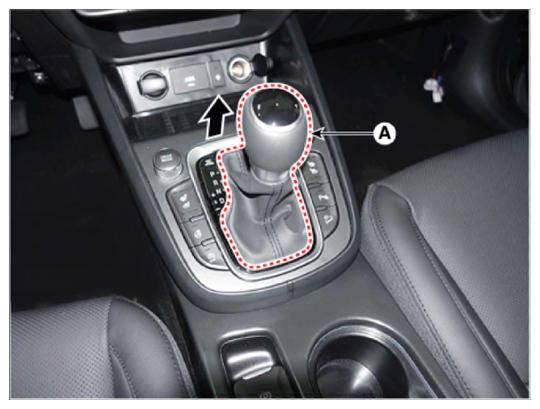

  7. Remove the shift lever knob & boots (A) pull both of it up.
    G14714652Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ")

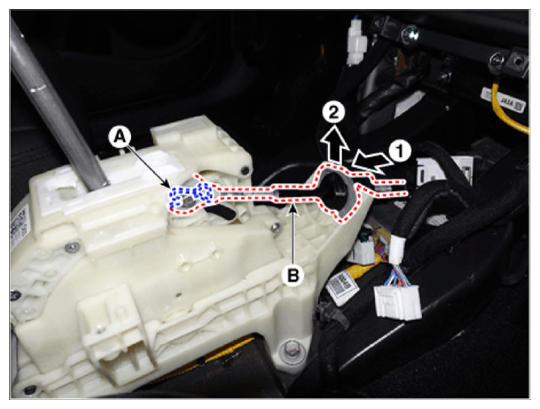

  9. Disconnect the shift cable socket (B) after removing the snap pin (A).
    G14714653Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the crash pad.

    (Refer to Body (Interior and Exterior) - "CRASH PAD ")

  11. Remove the heater and blower.

    (Refer to Heating, Ventilation and Air Conditioning - "HEATER UNIT ")

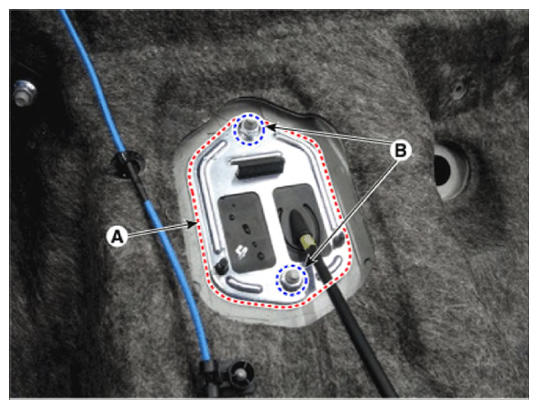

  12. Remove the retainer (A) by loosening the nuts (B).
    G14714654Courtesy of HYUNDAI MOTOR AMERICA
