Components & Components Location: Components

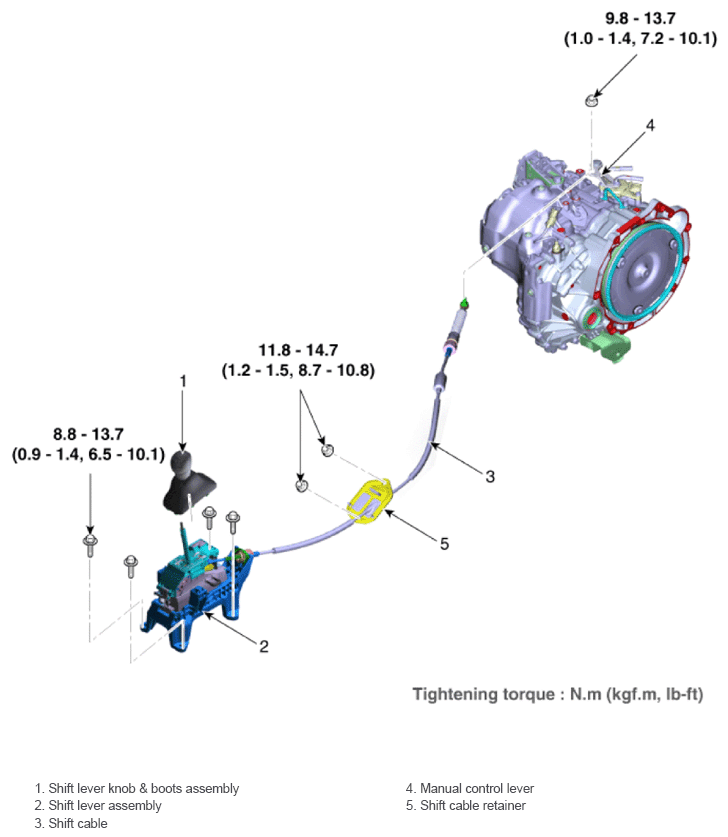

Fig 1: Shift Lever Components Location With Torque Specifications

G14714641

Courtesy of HYUNDAI MOTOR AMERICA
