IVT Control System - 2.0L
>>
Position Switch
>>
Components & Components Location
>>
Component Location
Component Location

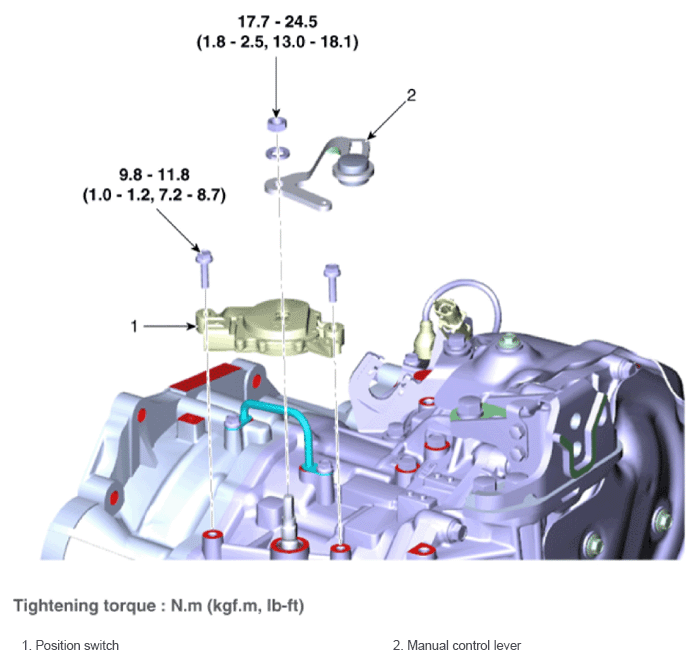

Fig 1: Position Switch Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
