Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE AND TRANSAXLE ASSEMBLY ")

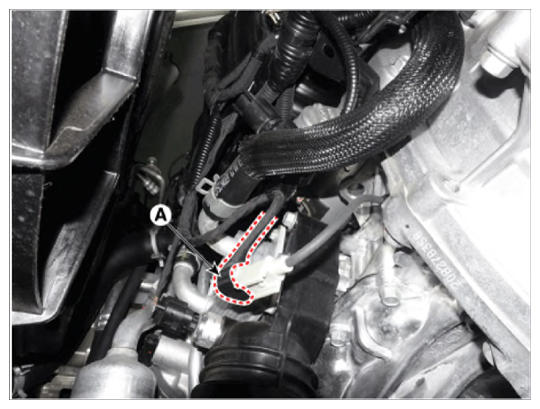

  3. Disconnect the crankshaft position sensor connector (A).
    G14714409Courtesy of HYUNDAI MOTOR AMERICA

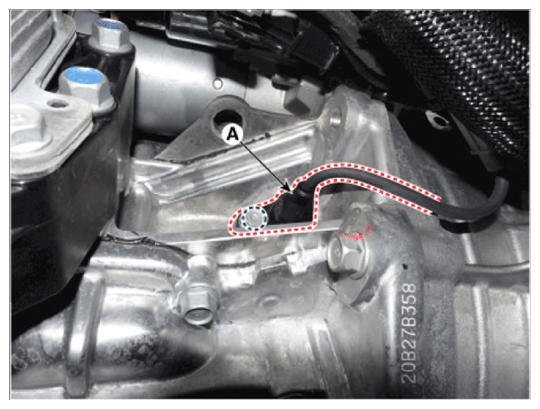

  4. Remove the crankshaft position sensor (A) after loosening mounting bolt.

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14714410Courtesy of HYUNDAI MOTOR AMERICA
