Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

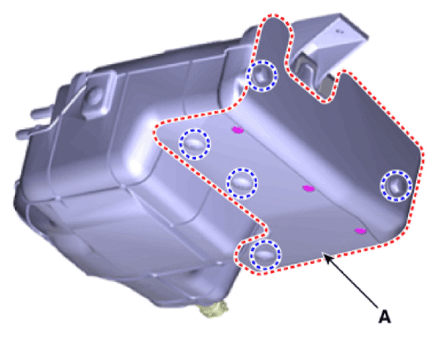

  3. Remove the canister protector (A) after loosening the mounting bolt & fastener.
    G14714474Courtesy of HYUNDAI MOTOR AMERICA

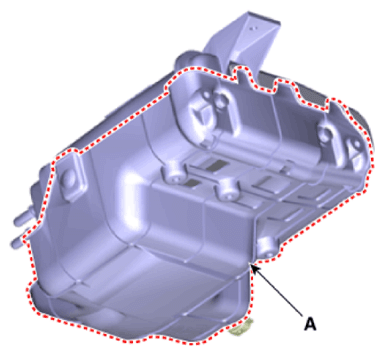

  4. Remove the canister cover (A) after loosening the mounting bolt & fastener.
    G14714475Courtesy of HYUNDAI MOTOR AMERICA

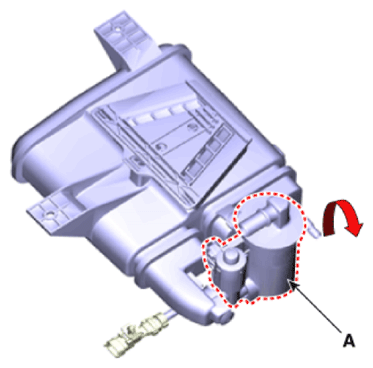

  5. Remove the clip, and then separate the fuel tank air filter (A) from the canister after rotating it in the direction of the arrow in the figure.
    G14714476Courtesy of HYUNDAI MOTOR AMERICA

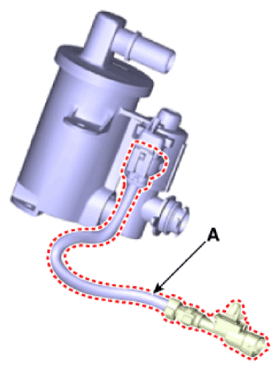

  6. Remove the canister close valve extension wiring (A).
    G14714477Courtesy of HYUNDAI MOTOR AMERICA

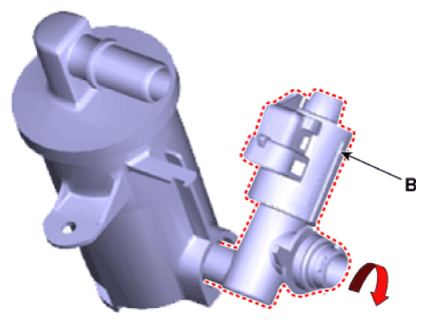

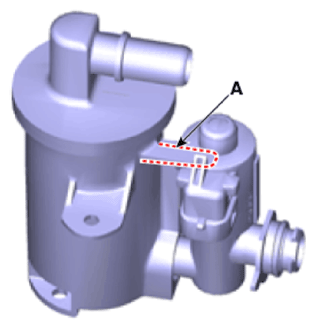

  7. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
G14714478Courtesy of HYUNDAI MOTOR AMERICA
G14714479Courtesy of HYUNDAI MOTOR AMERICA
