Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

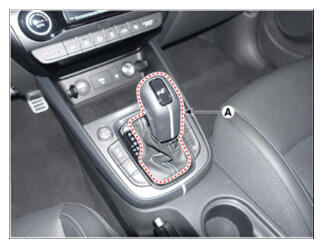

  2. Remove the shift knob & boots (A).
    G16186469Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE REPAIR PROCEDURES ")

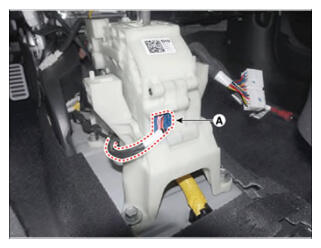

  4. Disconnect the shift lever connector (A).
    G16186470Courtesy of HYUNDAI MOTOR AMERICA

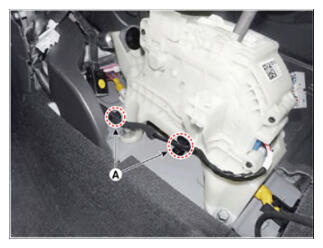

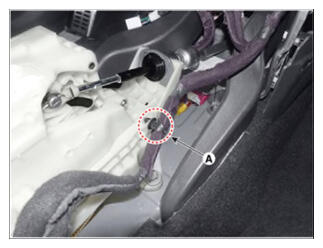

  5. Disconnect the wiring clip (A).
    G16186471Courtesy of HYUNDAI MOTOR AMERICA
    G16186472Courtesy of HYUNDAI MOTOR AMERICA

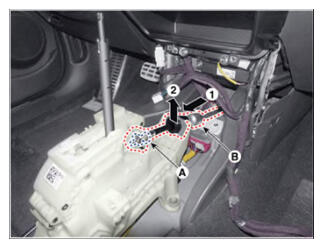

  6. Remove the snap pin (A) and then separate the shift cable (B).
    G16186473Courtesy of HYUNDAI MOTOR AMERICA
  7. Loosen the shift lever mounting bolts and then remove the shift lever (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G16186474Courtesy of HYUNDAI MOTOR AMERICA
