Components & Components Location: Components

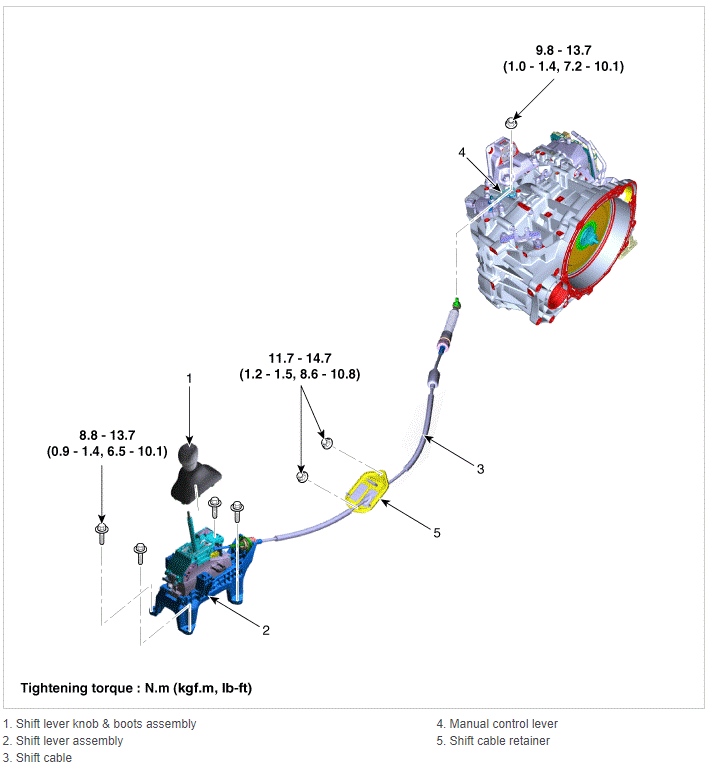

Fig 1: Shift Lever Components Location With Torque Specification

G16186468

Courtesy of HYUNDAI MOTOR AMERICA
