Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

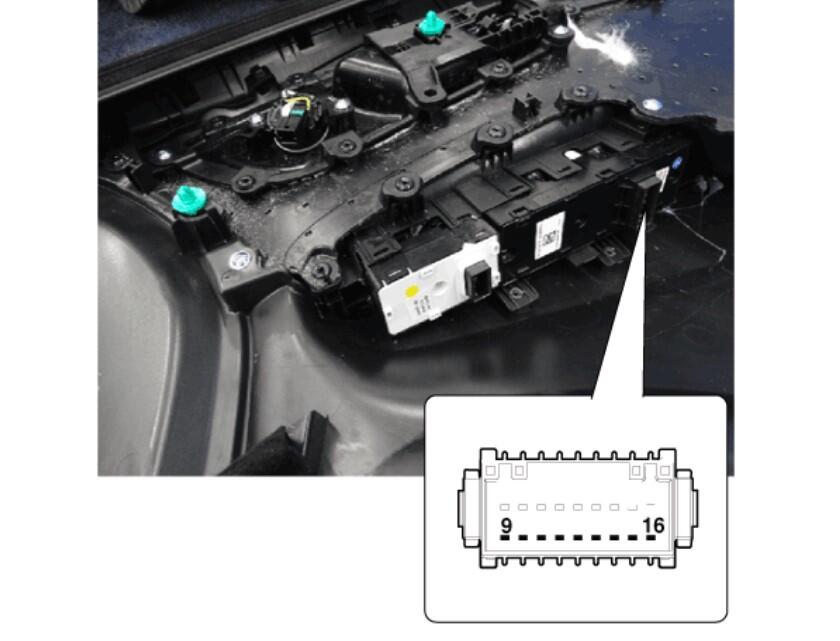

  3. Disconnect the power window switch (A) connector from the door trim.
    G16194831Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as shown.

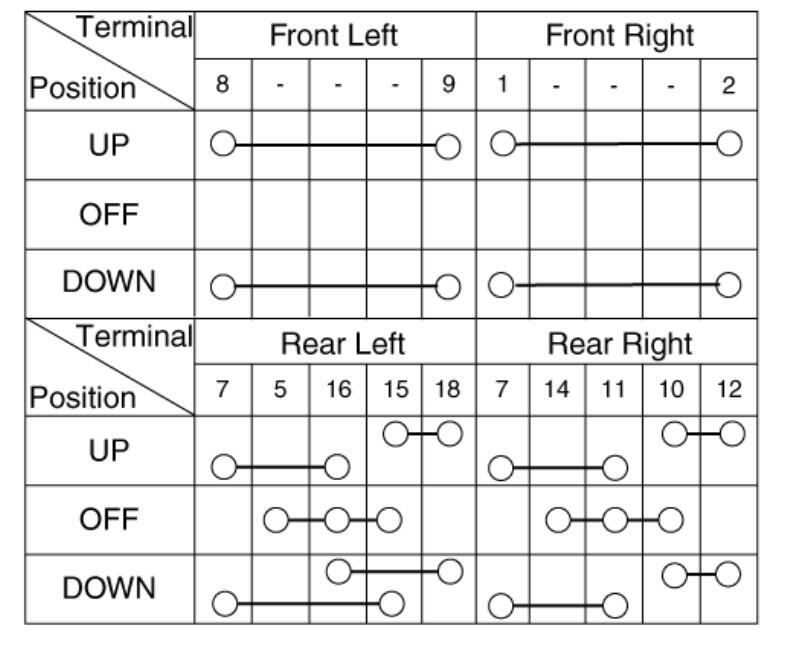

    Power Window Switch Inspection

    G16194832Courtesy of HYUNDAI MOTOR AMERICA

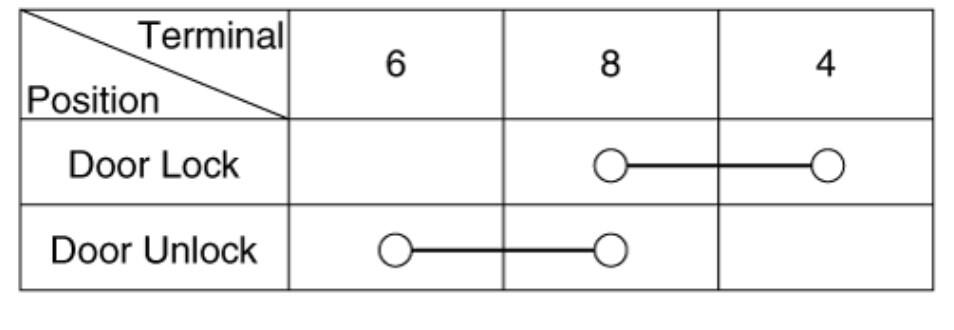

    Power Door Lock Switch Inspection

    G16194833Courtesy of HYUNDAI MOTOR AMERICA

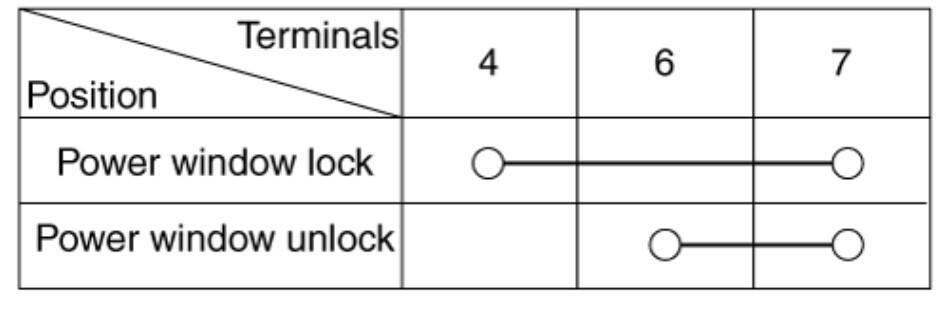

    [Power Window Lock Switch Inspection

    G16194834Courtesy of HYUNDAI MOTOR AMERICA
