Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column upper and lower shrouds.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

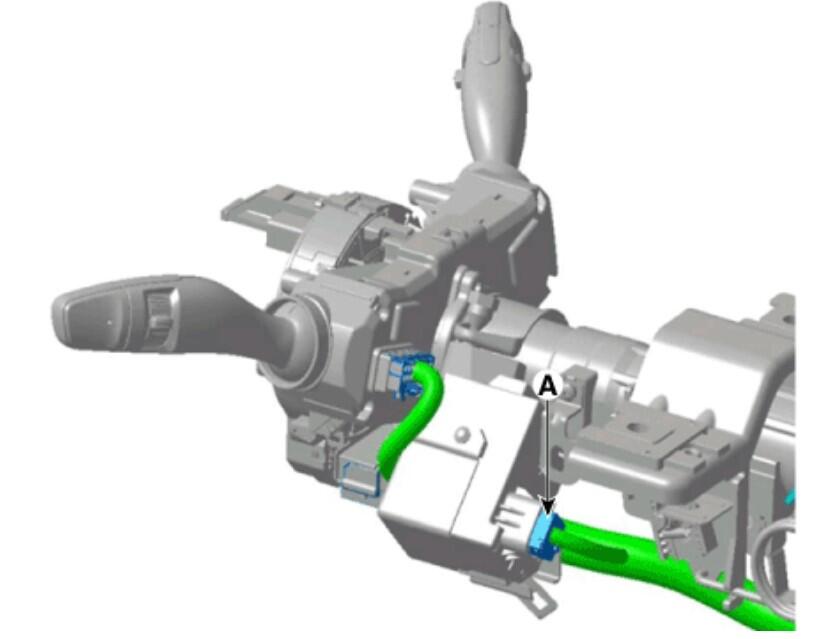

  4. Disconnect the electronic steering column lock connector (A).
    G16195015Courtesy of HYUNDAI MOTOR AMERICA

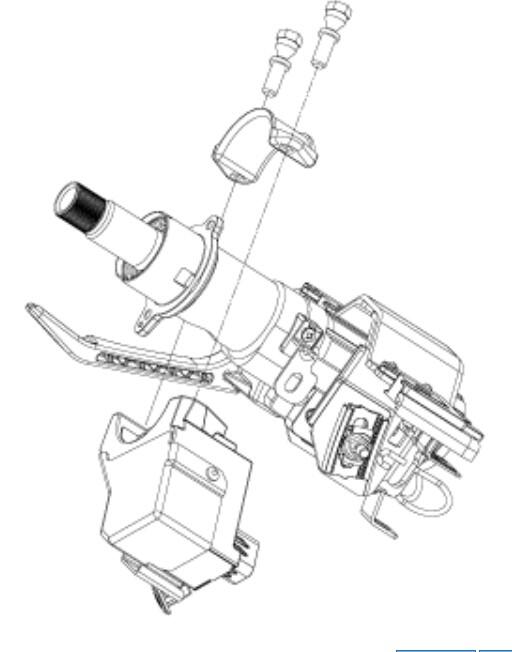

  5. Remove the electronic steering column lock.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

    G16195016Courtesy of HYUNDAI MOTOR AMERICA
