VIN Programming Procedure
WARNING: This page is about a different variant/trim than selected.
VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to GENERAL INFORMATION ). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) is set.
CAUTION:
- The programmed VIN cannot be changed. When writing the VIN, confirm the VIN carefully
- Turn OFF the ignition switch.
- Connect the GDS to Data Link Connector (DLC).
- Turn ON the ignition switch.
- Select "Vehicle, Model Year, Engine, System".
- Select "Vehicle S/W Management".

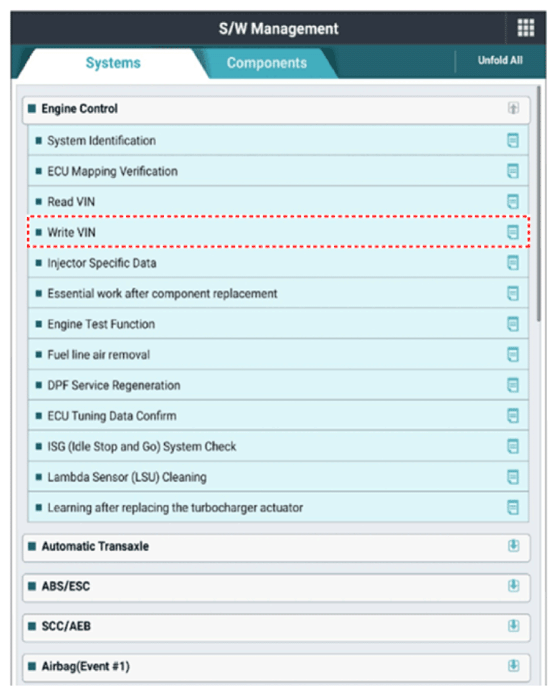

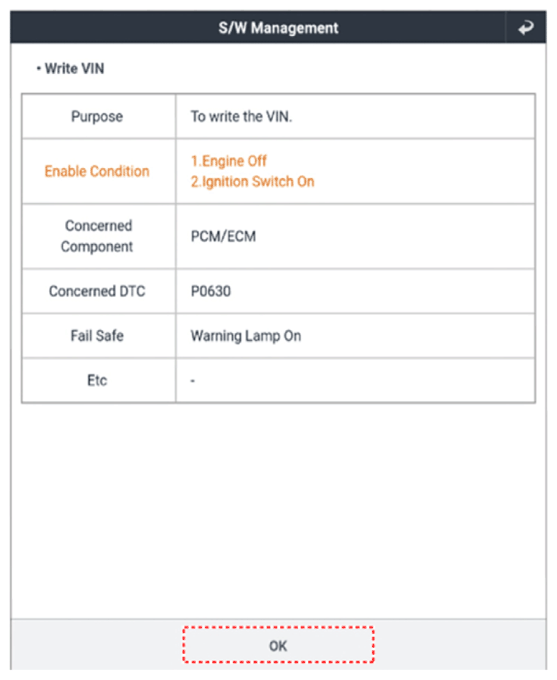

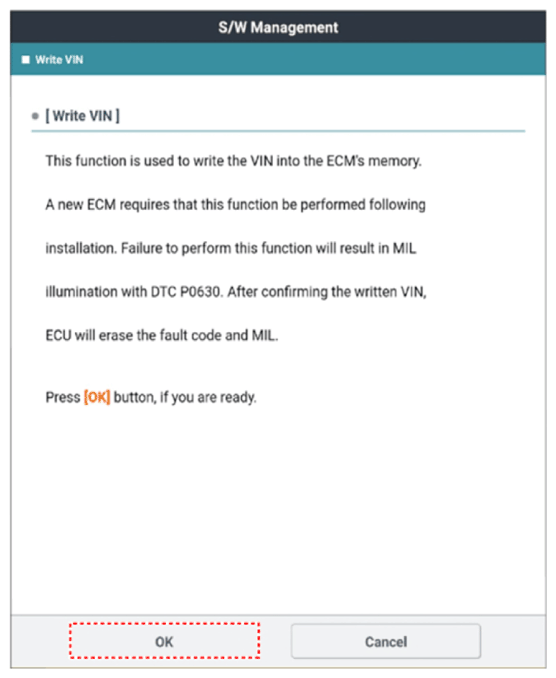

- Select "Write VIN".
- Input the VIN.WARNING:
- Before inputting the VIN, confirm the VIN again because the programmed VIN cannot be changed.
