Repair Procedures: Inspection

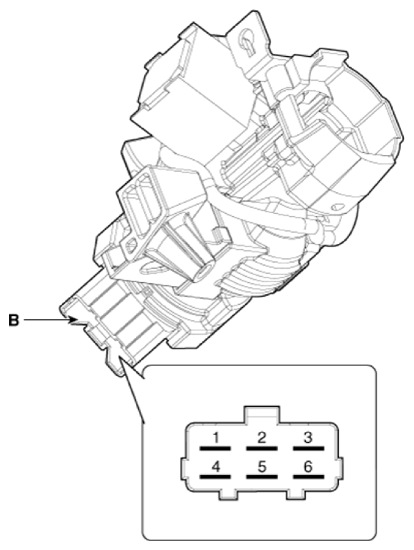

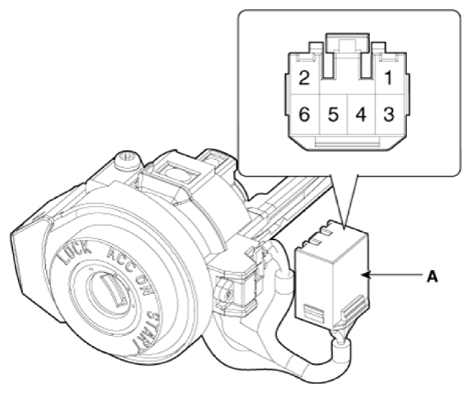

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G14713505Courtesy of HYUNDAI MOTOR AMERICA
    G14713506Courtesy of HYUNDAI MOTOR AMERICA

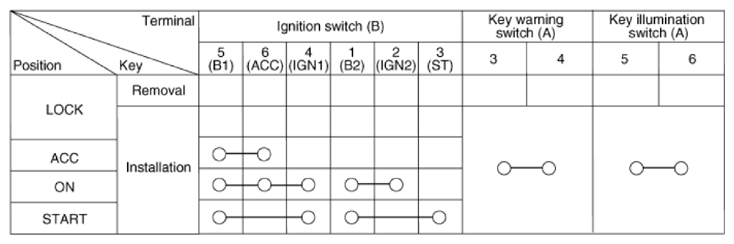

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14713507Courtesy of HYUNDAI MOTOR AMERICA
