Repair Procedures: Replacement
Information
| Change | Oil capacity | Standard oil | |
|---|---|---|---|
| Normal use | Severe use | About 0.5L (0.13 U.S.gal., 0.53 U.S.qt, 0.44 lmp.qt.) | API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent) |
| No service required | 120000 km (80000 miles) | ||
Severe driving conditions
- Driving in dusty, rough roads
- Driving in mountains areas
- Driving for patrol car, taxi, commercial car or vehicle towing
- Driving over 170 Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

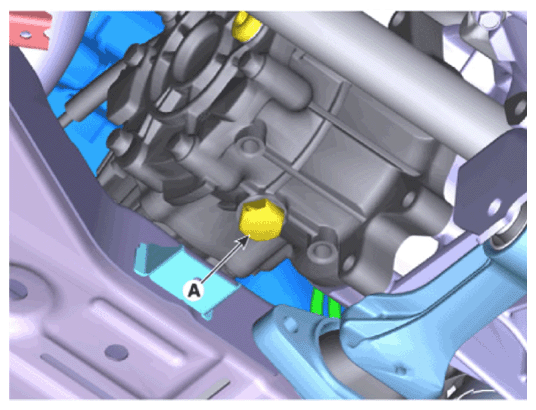

- Drain the transfer oil after loosening the drain plug (A).
- Install the drain plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

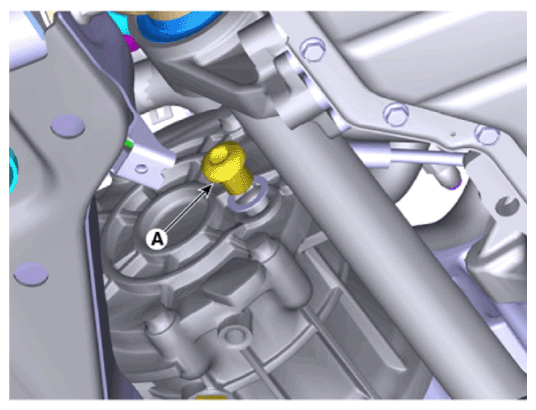

- Remove the oil filler plug (A).
Standard oil: API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent)
Oil capacity: Oil level must be up to fill the hole, if not, add oil until it runs over.
- Install the oil filler plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
