Wheel Alignment: Tires/Wheels/Alignment: Wheel: Installation

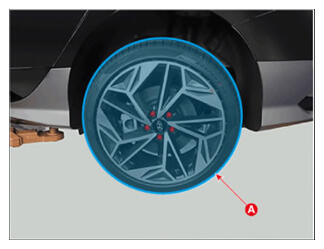

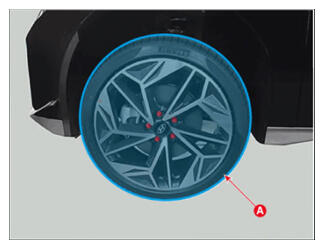

Install the wheel and tire (A).
[Front]

Courtesy of HYUNDAI MOTOR AMERICA

[Rear]

Courtesy of HYUNDAI MOTOR AMERICA
Tighten the hub nuts as follows.
Tightening torque: 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- When using an impact gun, final tightening torque should be checked using a torque wrench.

  Fig 1: Hub Nuts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
