Removal And Installation
- Remove the auxiliary 12V battery.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")

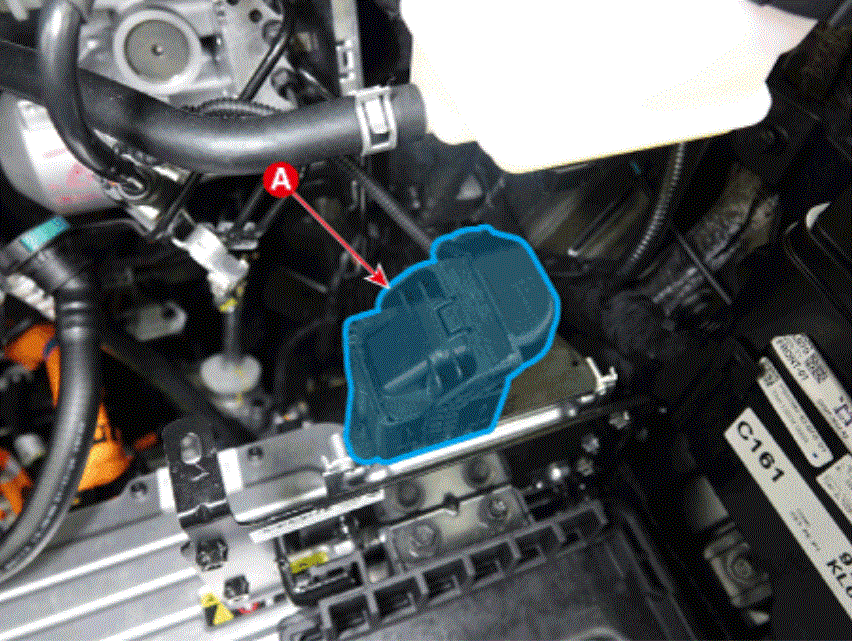

- Disconnect the vehicle control unit (VCU) connector (A).

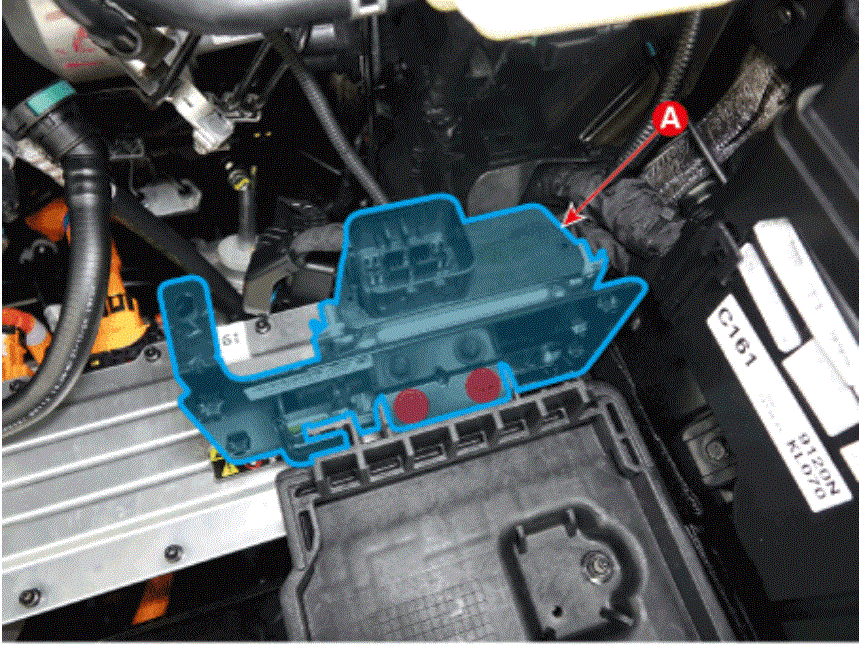

- Remove the vehicle control unit (VCU) (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.NOTE:
- When replacing OTA controller, use the diagnostic device to update S/W. (If the S/W update is not complete, OTA update is not possible.)
(Refer to Body (Interior/Exterior/Electrical) - "OVER THE AIR (OTA) ")
- When replacing OTA controller, use the diagnostic device to update S/W. (If the S/W update is not complete, OTA update is not possible.)
