Power Window Switch: Removal

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing using a remover, be careful not to damage the parts.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the 12V battery (-) terminal.

    (Refer to Vehicle Control System - " AUXILIARY BATTERY (12V)  ")

  2. Remove the floor console upper cover.

    (Refer to Floor Console - " FLOOR CONSOLE UPPER COVER  ")

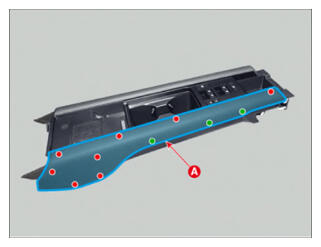

  3. Remove the floor console upper side cover (A).

    [LH]

    G16199988Courtesy of HYUNDAI MOTOR AMERICA

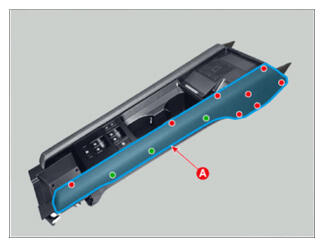

    [RH]

    G16199989Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16199990Courtesy of HYUNDAI MOTOR AMERICA

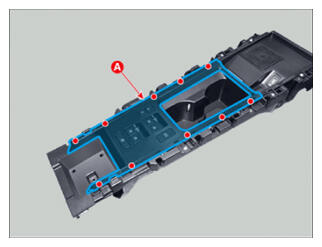

  4. Remove the floor console upper garnish (A).
    G16199991Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16199992Courtesy of HYUNDAI MOTOR AMERICA

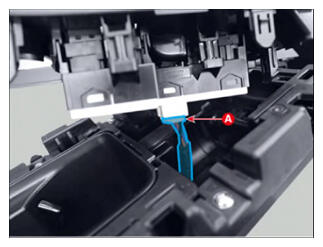

  5. Disconnect the power window switch connector (A).
    G16199993Courtesy of HYUNDAI MOTOR AMERICA

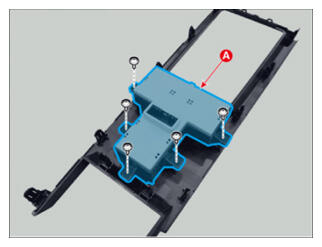

  6. Remove the power window switch (A), after removing the screws.
G16199994Courtesy of HYUNDAI MOTOR AMERICA
