Wheel Alignment: Tires/Wheels/Alignment: Wheel: Installation

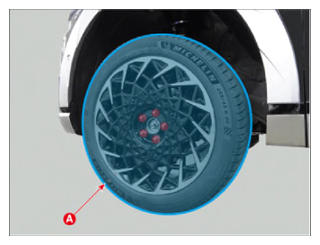

  1. Install the wheel and tire (A).
    G15461635Courtesy of HYUNDAI MOTOR AMERICA

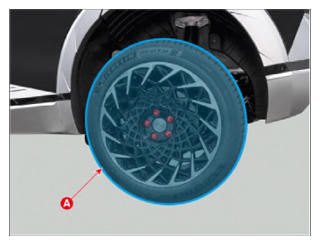

    [Rear]

    G15461636Courtesy of HYUNDAI MOTOR AMERICA
  2. Tighten the hub nuts as follows.

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

    NOTE:
    • When using an impact gun, final tightening torque should be checked using a torque wrench.
    G15461637Courtesy of HYUNDAI MOTOR AMERICA

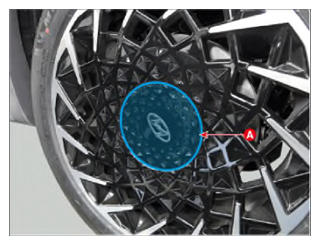

  3. Install the wheel cap (A).
G15461638Courtesy of HYUNDAI MOTOR AMERICA
