Removal And Installation

Remove the auxiliary 12V battery.
(Refer to Vehicle Control System - "AUXILIARY BATTERY (12V) ")

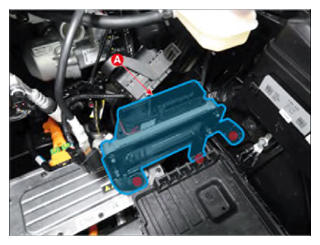

Disconnect the vehicle control unit (VCU) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

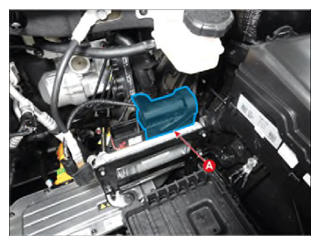

Remove the vehicle control unit (VCU) (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
