Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.

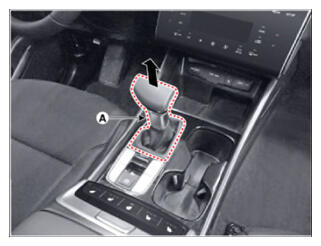

Remove the shift knob & boots (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

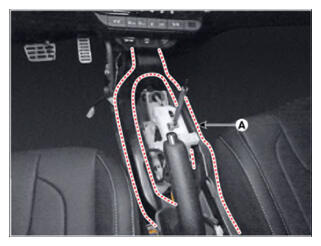

Remove the floor console air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

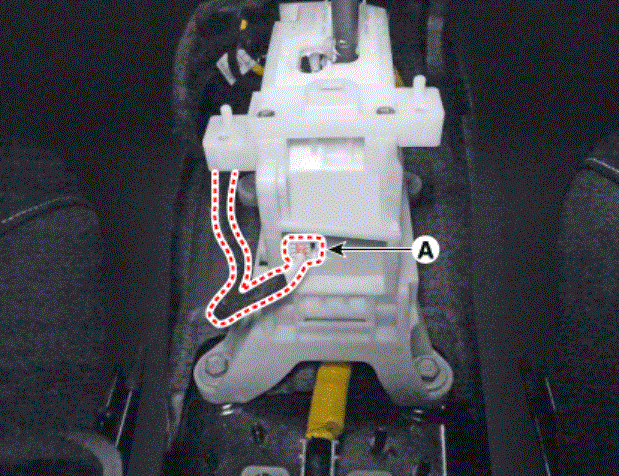

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

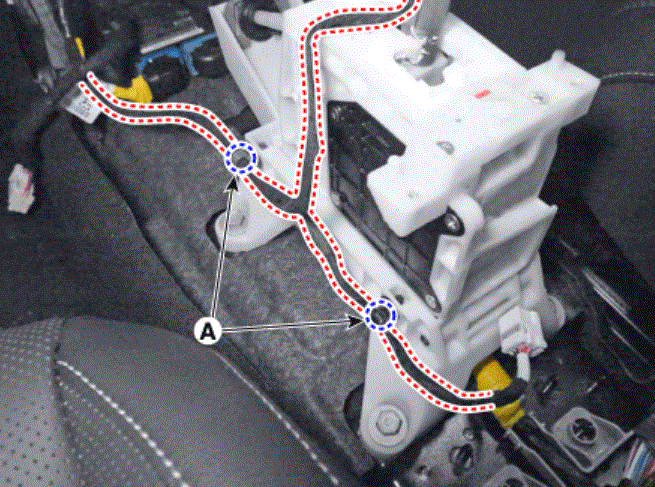

Disconnect the wiring clip (A).

Courtesy of HYUNDAI MOTOR AMERICA

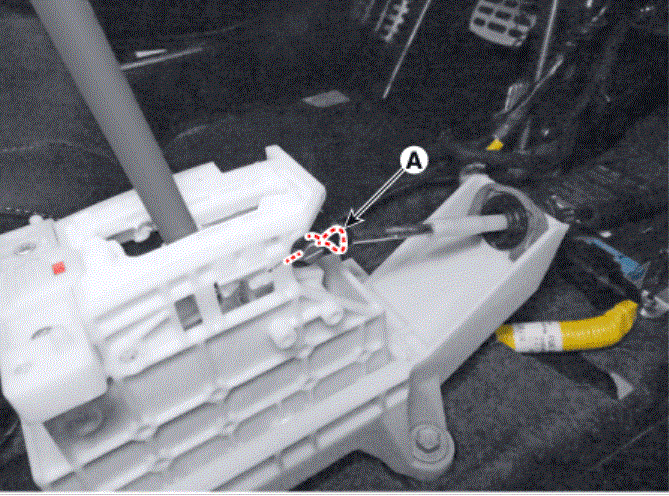

Remove the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

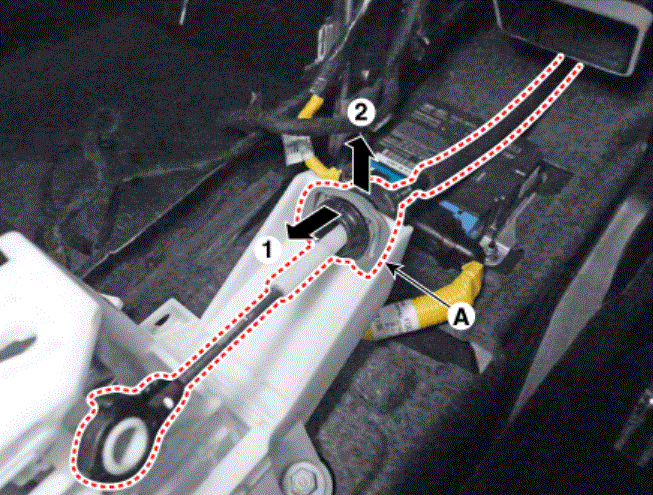

Disconnect the shift cable end (A).

Courtesy of HYUNDAI MOTOR AMERICA

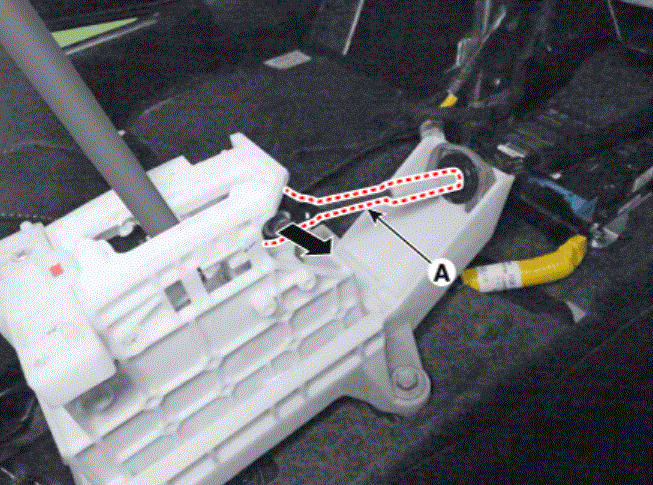

Disconnect the shift cable socket (A).

Courtesy of HYUNDAI MOTOR AMERICA

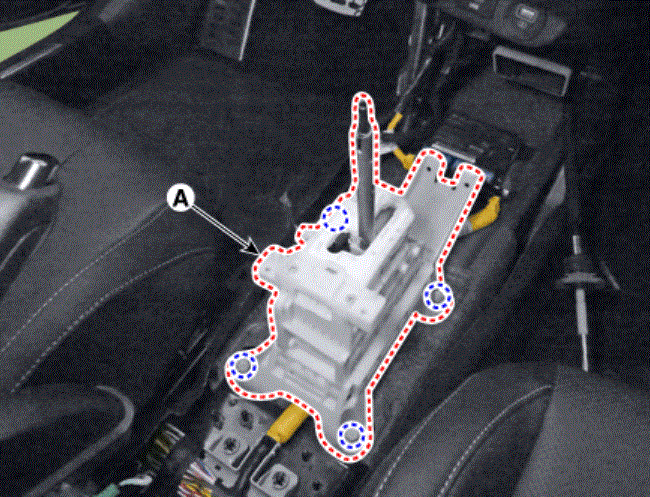

Loosen the shift lever mounting bolts and then remove the shift lever.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
