Repair Procedures: Installation
- Apply tire soap or lubrication to the top and bottom tire beads.CAUTION:
- When changing the wheel, do not reuse the snap-in type TPMS sensor.

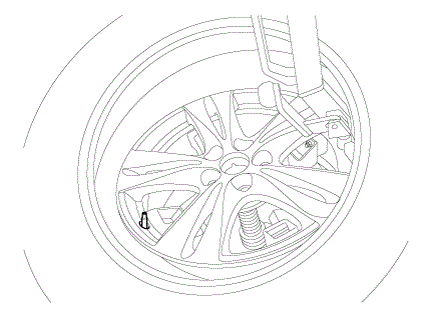

- To fit the bottom bead, position the valve at the 5 o'clock position relative to the head on the tire changing machine.
- Place the tire on the rim so the bottom bead touches the edge of the rim after the valve (6 o'clock). Rotate the rim clockwise, and push down on the tire at the 3 o'clock position to fit bottom bead.NOTE:
- Reach the tire on the wheel so that the beads touch the rim edge (6 o'clock) behind the sensor.
- Push down on the tire at the 3 o'clock position and rotate the rim clockwise to fit the top bead.
- Inflate the tire until beads seat.
Recommended Tire pressure : Refer to "SPECIFICATIONS "
