Repair Procedures: Removal

  1. Disconnect the battery (-) cable.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  4. connect the steering wheel connector (A).
    G16177680Courtesy of HYUNDAI MOTOR AMERICA

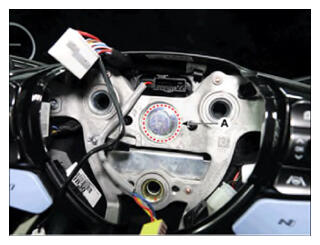

  5. Remove the steering wheel after loosening the steering wheel lock bolt (A).

    Tightening torque:

    44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G16177681Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the steering lock bolt.

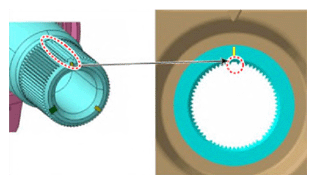

    • When assembling, match the gear teeth as in the illustration below.
      G16177682Courtesy of HYUNDAI MOTOR AMERICA
