Diagnostic Flowchart

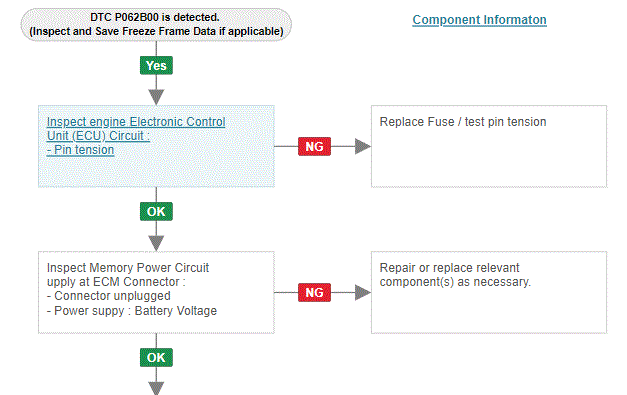

Fig 1: 1 Of 2
G16180371Courtesy of HYUNDAI MOTOR AMERICA

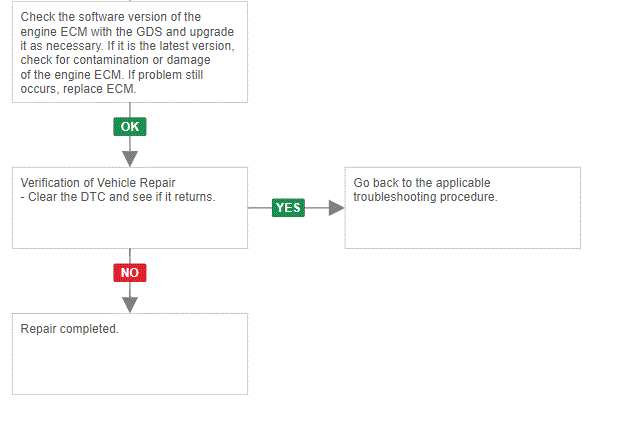

Fig 2: 2 Of 2
G00666498Courtesy of HYUNDAI MOTOR AMERICA
