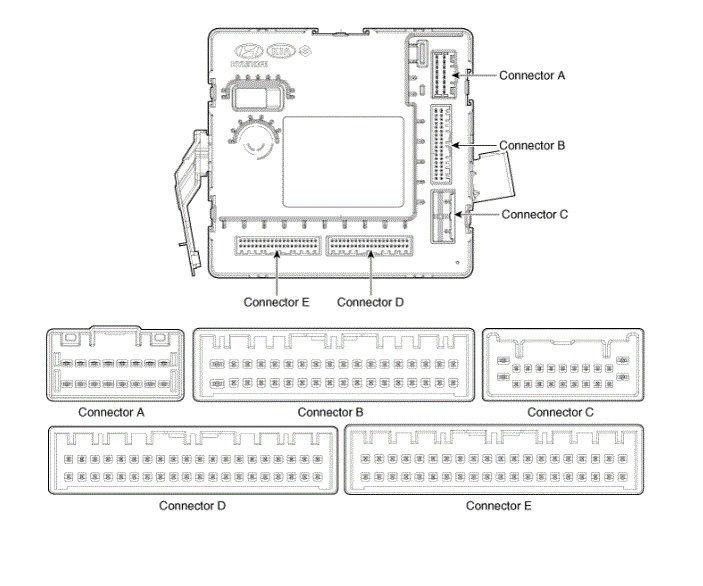

Components & Components Location: Components
CONNECTOR PIN INFORMATION
| Pin no | Connector A | Connector B | Connector C | Connector D | Connector E |
|---|---|---|---|---|---|
| 1 | ESCL (+)_output | - | - | - | - |
| 2 | - | - | - | - | - |
| 3 | - | Puddle pocket lamp_output | - | Mirror folding_output | - |
| 4 | Front washer switch _Input | - | - | - | |
| 5 | - | LIN(PDW) | - | - | ESCL enable_output |
| 6 | Ground_Power | PDW power_input | - | - | RPM_input |
| 7 | Ground_ECU | R-PDW power_output | - | - | Start relay_output |
| 8 | ESCL (-)_output | F-PDW power_output | - | - | ACC relay_output |
| 9 | Battery (+) ECU | ATM solenoid_output | - | Auto light sensor ground_output | Start feedback_input |
| 10 | Battery (+) Power | Head lamp high beam switch_input | - | Rear view camera switch_input | SSB switch2_input |
| 11 | IGN_Input | Front washer switch _Input | - | R-PDW switch_input | Trunk interior antenna3 (-)_output |
| 12 | K-line_IMMO | Front wiper INT volume switch_input | - | P-Position_input | interior antenna2 (-)_output |
| 13 | - | Wiper parking switch_input | - | Passenger outside handle switch_input | - |
| 14 | - | External buzzer_output | - | Multifunction Switch ground _Input | Passenger outside handle antenna (-)_output |
| 15 | - | PDW switch IND_output | - | ACC_input | - |
| 16 | - | - | - | IGN2_input | - |
| 17 | - | - | Front wiper low back up switch_input | - | |
| 18 | - | - | Brake switch_input | Driver outside handle antenna (-)_output | |
| 19 | - | - | - | Immobilizer antenna ground_output | |
| 20 | - | - | - | - | |
| 21 | - | - | - | - | |
| 22 | - | - | PDW option_input | - | |
| 23 | Wiper power relay_output | Mirror unfolding_output | - | ||
| 24 | - | - | - | ||
| 25 | Wiper low relay_output | - | - | ||
| 26 | Wiper high relay_output | - | Wheel speed sensor_input | ||
| 27 | - | - | IGN2 relay_output | ||
| 28 | Fog lamp switch_input | - | IGN1 relay_output | ||
| 29 | Light switch_input | Auto light sensor power_output | SSB symbol illumination(+)_output | ||
| 30 | - | Auto light sensor signal_input | SSB switch1_input | ||
| 31 | - | Sunroof status_input | Trunk interior antenna3 (+)_output | ||
| 32 | - | ESCL unlock switch_input | Interior antenna2 (+)_output | ||
| 33 | ESCL_COM | Clutch lock switch_input (MT) | - | ||
| 34 | - | Driver outside handle switch_input | Passenger outside handle antenna (+)_output | ||
| 35 | - | B-CAN High | - | ||
| 36 | - | B-CAN Low | - | ||
| 37 | P-CAN High | - | |||
| 38 | P-CAN Low | Driver outside handle antenna (+)_output | |||
| 39 | - | Immobilizer antenna power_output | |||
| 40 | - | - |
