Repair Procedures: Inspection: Notes

The following information describes how to diagnose faults using a diagnostic instrument.

1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.

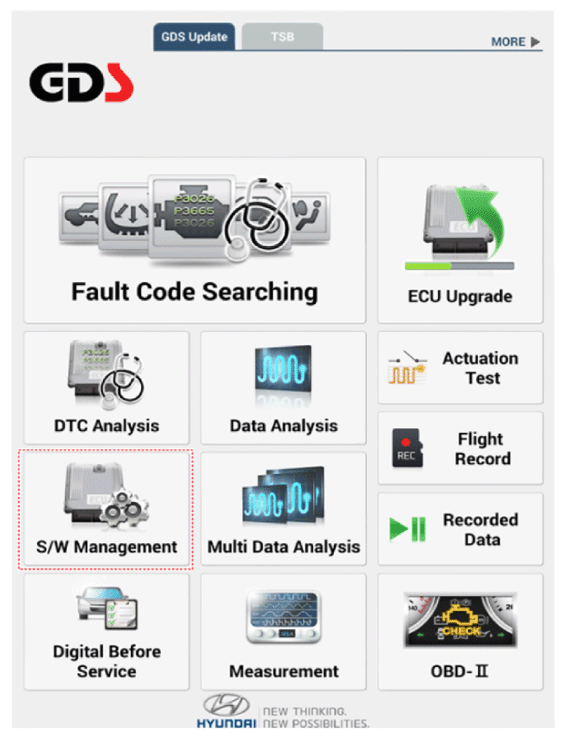

2. Select the 'S/W Management' and 'Car model'.

   Courtesy of HYUNDAI MOTOR AMERICA

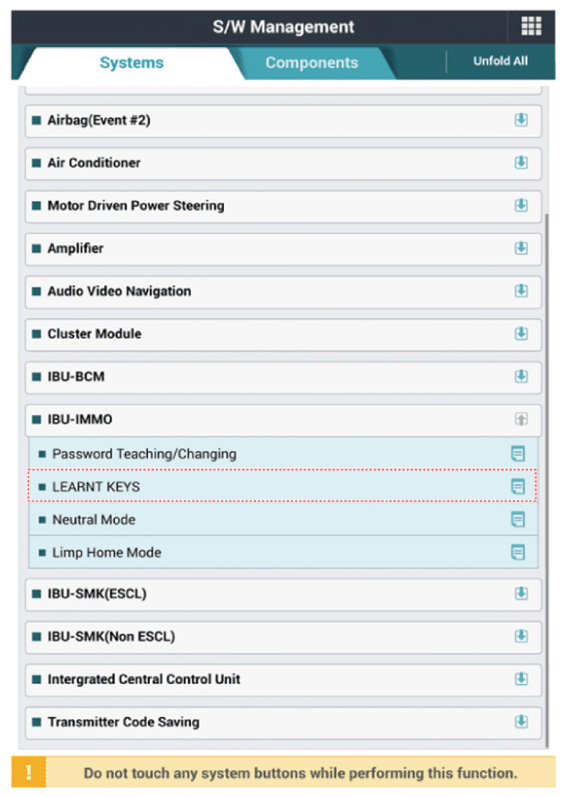

3. Select "Immobilizer" and "LEARNT KEYS".

   Courtesy of HYUNDAI MOTOR AMERICA

4. form the "LEARNT KEYS" procedure according to the GDS screen message.
