Repair Procedures: Disassembly

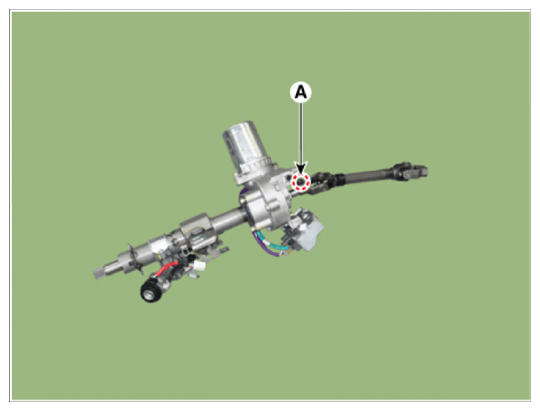

  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

    Tightening torque:

    33.3.-38.2 N.m (3.4-3.9 kgf.m, 24.6-28.2 lb.ft)

    G14695194Courtesy of HYUNDAI MOTOR AMERICA
  2. To reassembly, reverse the disassembly procedure.
