Components And Components Location

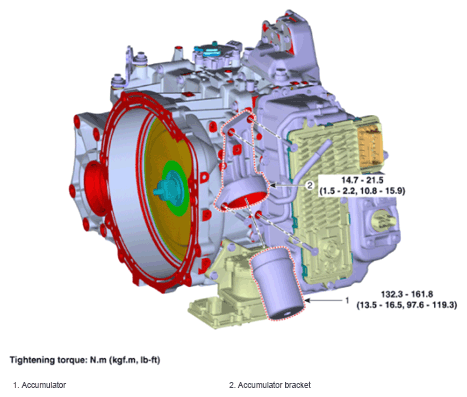

Fig 1: Accumulator Components Location With Torque Specification

G15474866

Courtesy of HYUNDAI MOTOR AMERICA
