Repair Procedures: Removal

  1. Lift the vehicle.

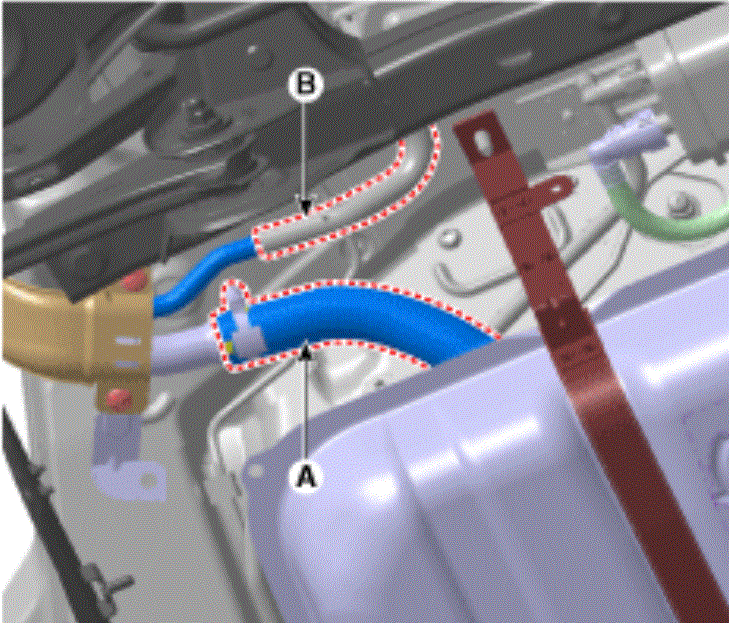

  2. Disconnect the fuel filler hose (A), the leveling hose (B).
    G15472257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Open the fuel filler door.

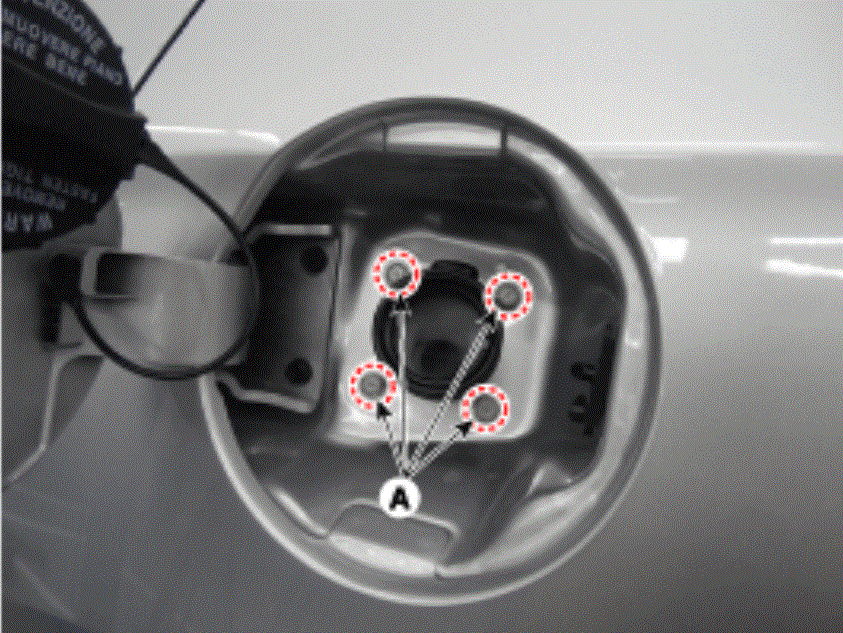

  4. Remove the filler-neck mounting bolt (A).
    G15472258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Remove the rear-LH wheel, tire, and the inner wheel house.

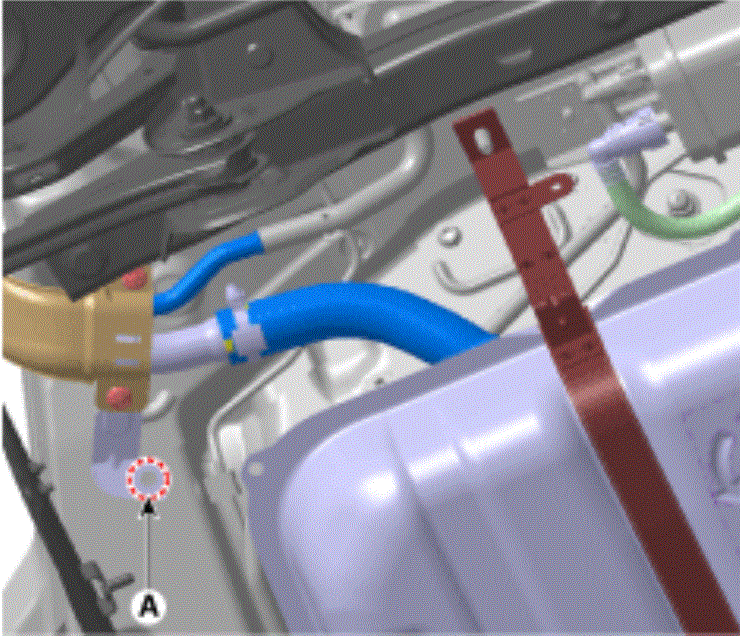

  6. Remove the filler - neck assembly after loosening the mounting bolt (A).
    G15472259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
