Components And Components Location: Components

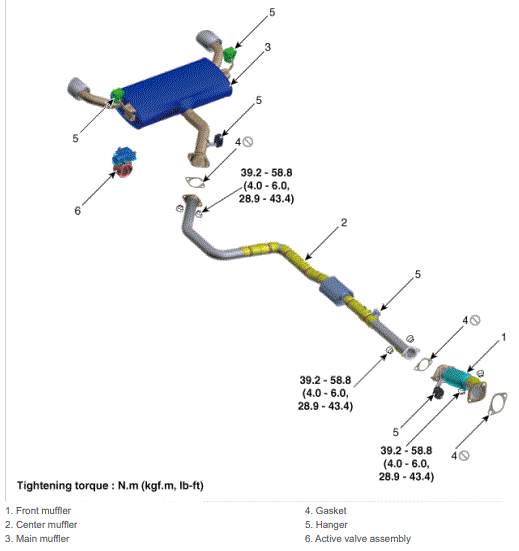

Fig 1: Muffler Components Location With Torque Specification

G15471775

Courtesy of HYUNDAI MOTOR AMERICA
