Repair Procedures: Removal

  1. Remove the front bumper cover. (Refer to Body - "FRONT BUMPER COVER ")

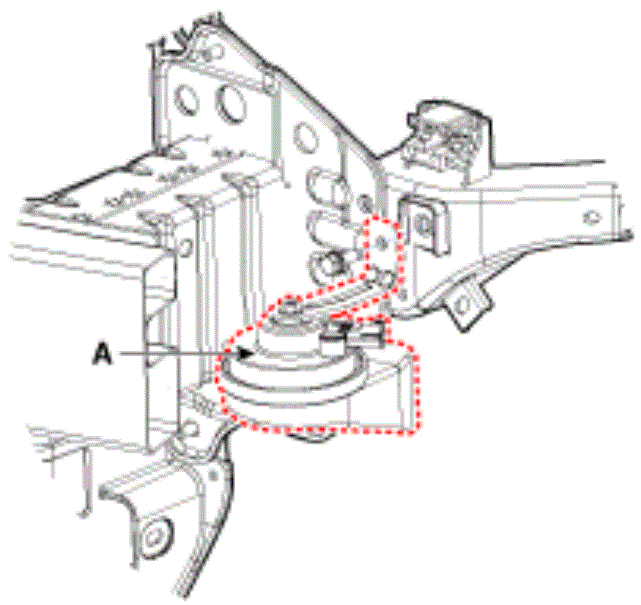

  2. Remove the horn (A) after disconnecting the connector by loosening the mounting bolt.
    G15494830Courtesy of HYUNDAI MOTOR AMERICA
