Tailgate Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim. (Refer to Body - "TRUNK TRIM ")

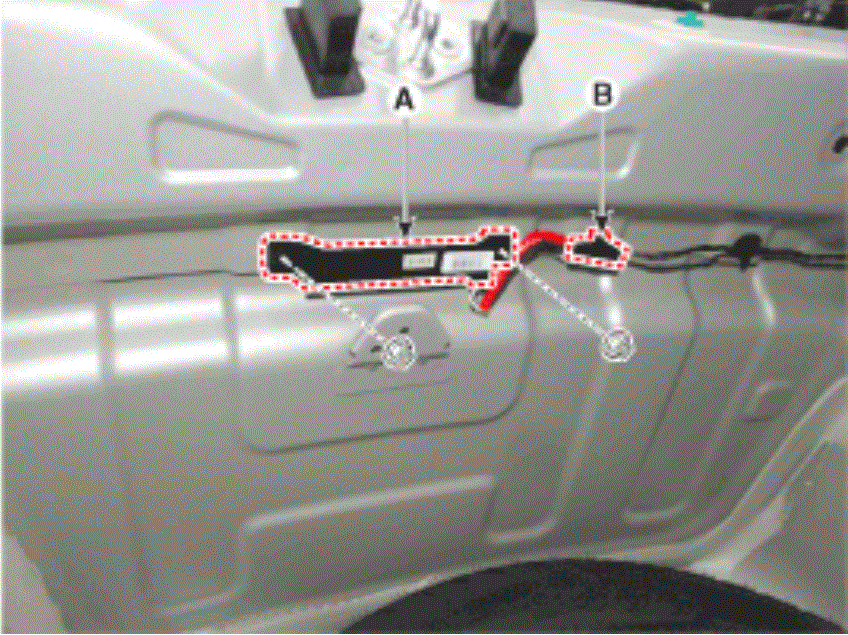

  3. Remove the tailgate antenna (A) after removing mounting nuts and connector (B).
    G15494897Courtesy of HYUNDAI MOTOR AMERICA
