Door Outside Handle

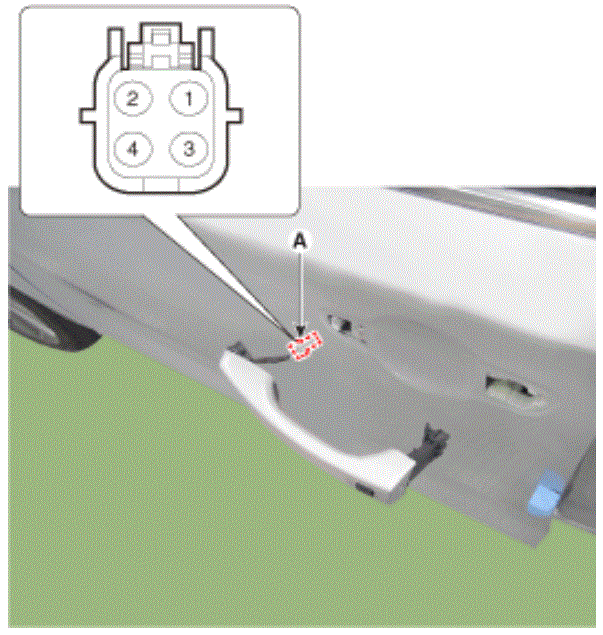

  1. Disconnect the front door outside handle connector (A).
    G15494900Courtesy of HYUNDAI MOTOR AMERICA

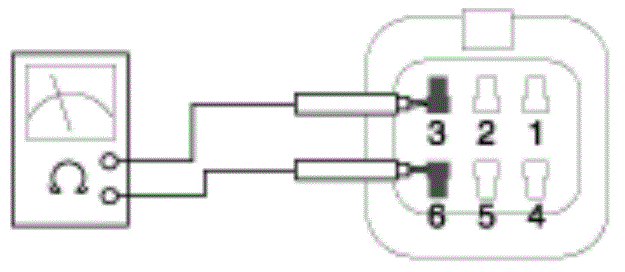

  2. Check for continuity between terminals No 3 and No 6.
    G15494901Courtesy of HYUNDAI MOTOR AMERICA
    No Description
    1 Antenna 1
    2 Switch 1
    3 Antenna 2
    4 Switch 2

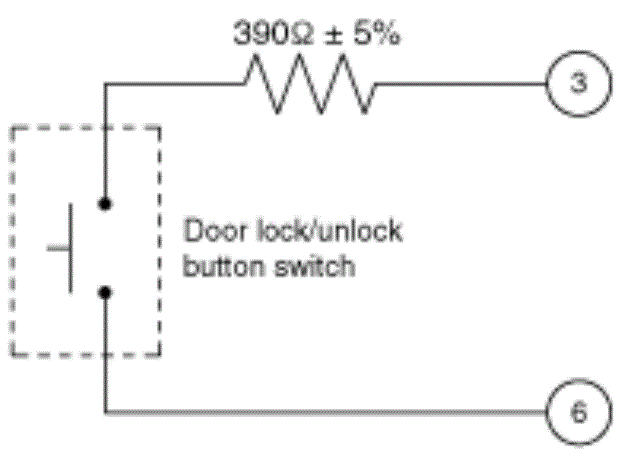

G15494902Courtesy of HYUNDAI MOTOR AMERICA
