Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

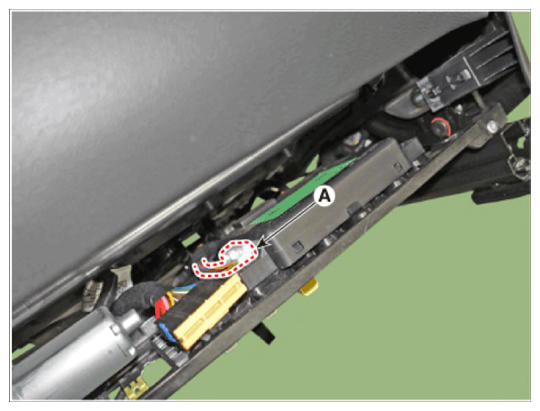

  3. Disconnect power seat unit connector (A).
    G14684268Courtesy of HYUNDAI MOTOR AMERICA

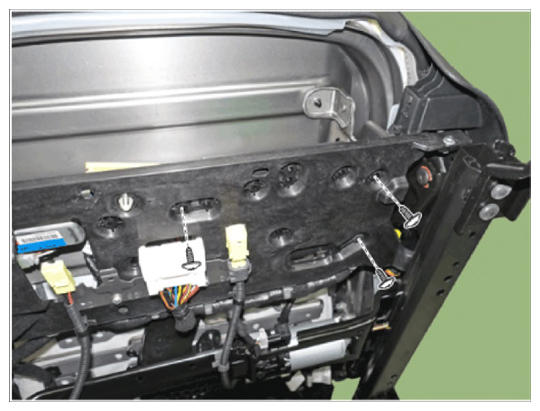

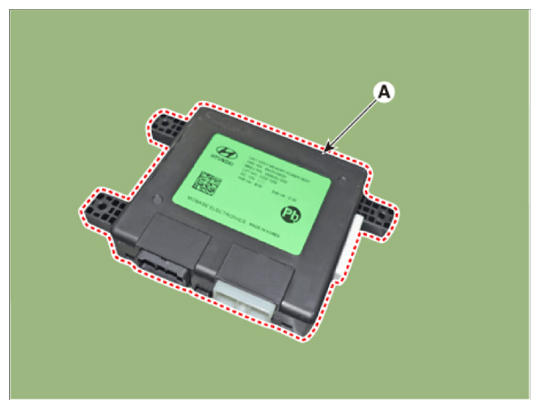

  4. Remove the power seat unit (A) after loosening mounting screws.
G14684269Courtesy of HYUNDAI MOTOR AMERICA
G14684270Courtesy of HYUNDAI MOTOR AMERICA
