Yaw Rate & Lateral Acceleration Sensor

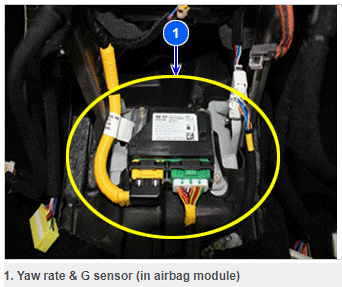

G16170263Courtesy of HYUNDAI MOTOR AMERICA

Yaw rate sensor detects yaw moment electronically from a plate fork installed in the sensor when the vehicle makes a turn perpendicular to the ground while the vehicle is moving. When the vehicle makes a turn or move, socket rotates itself and generates voltage. If the yaw moment value reaches a certain point, the ESP (ESC) control is activated.
