Home >> Hyundai >> 2022 >> Tucson Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (6 Of 8) >> DTC P061A-00: Internal Control Module Torque Performance >> Troubleshooting >> Diagnostic Flowchart

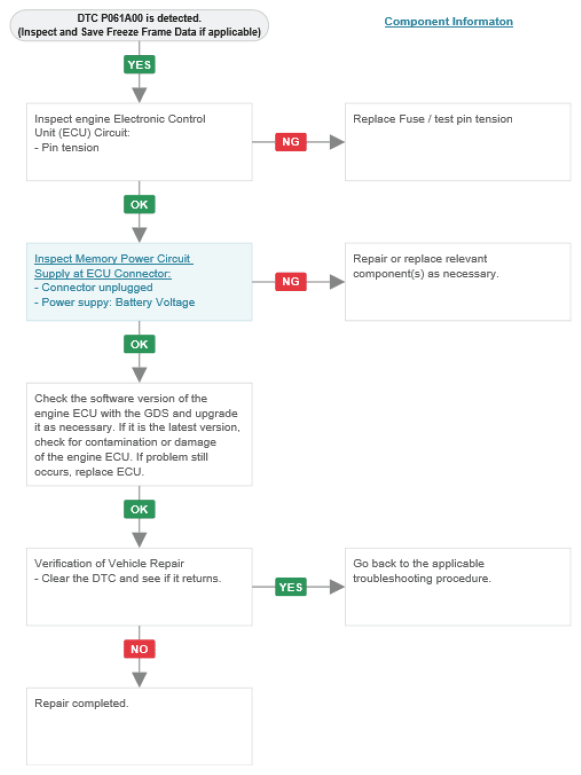

Diagnostic Flowchart

G16170534Courtesy of HYUNDAI MOTOR AMERICA
