Active Purge Pump Sensor [Rear]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

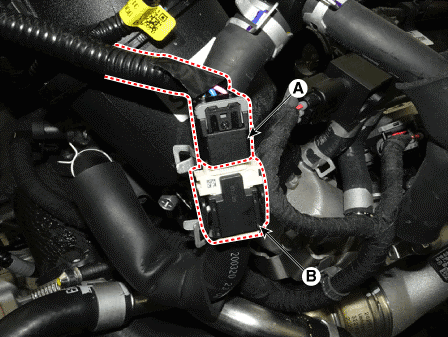

  2. Disconnect the front active purge pump sensor connector (A).
  3. Release the fixing hook and then remove the active purge pump sensor (B).
    G16172536Courtesy of HYUNDAI MOTOR AMERICA
