Smart Key Code Saving

G16175127Courtesy of HYUNDAI MOTOR AMERICA

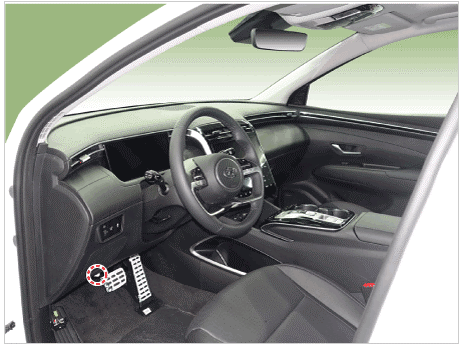

  1. Connect the DLC cable of diagnostic tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on diagnostic tool.
  2. Select the 'S/W Management' and 'Car model'.

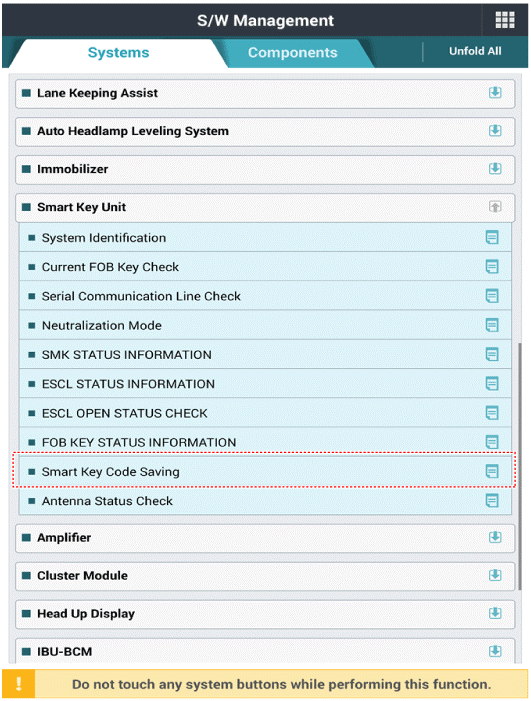

  3. Select the 'Smart Key Unit' and 'Smart Key Code Saving'.
    G16175128Courtesy of HYUNDAI MOTOR AMERICA

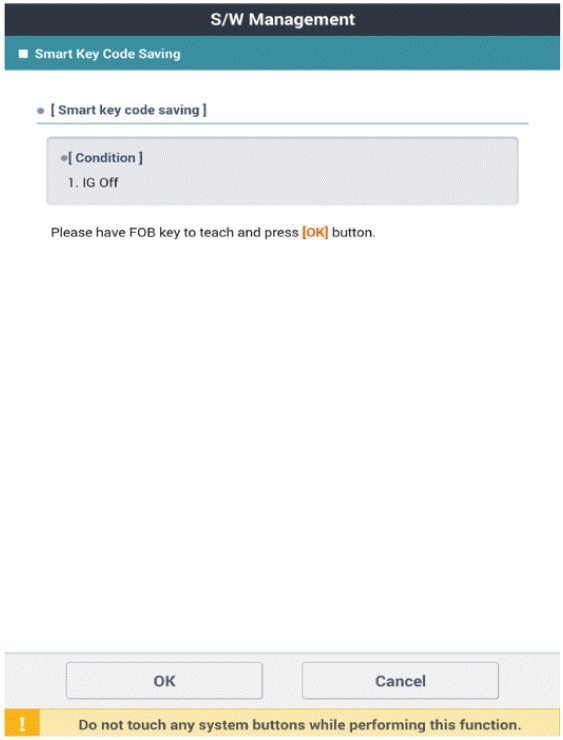

  4. Follow the instructions on the screen.
G16175129Courtesy of HYUNDAI MOTOR AMERICA
