Neutralization Status Check

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel.
  2. Select the 'S/W Management' and 'Car model'.

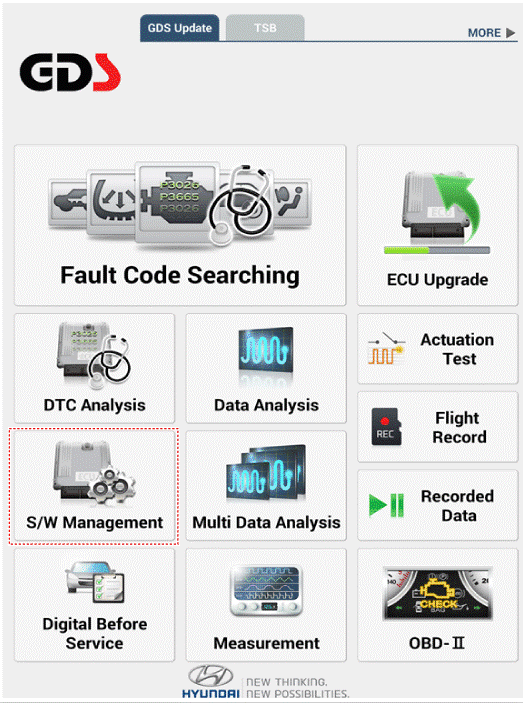

    G16175124Courtesy of HYUNDAI MOTOR AMERICA
  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.

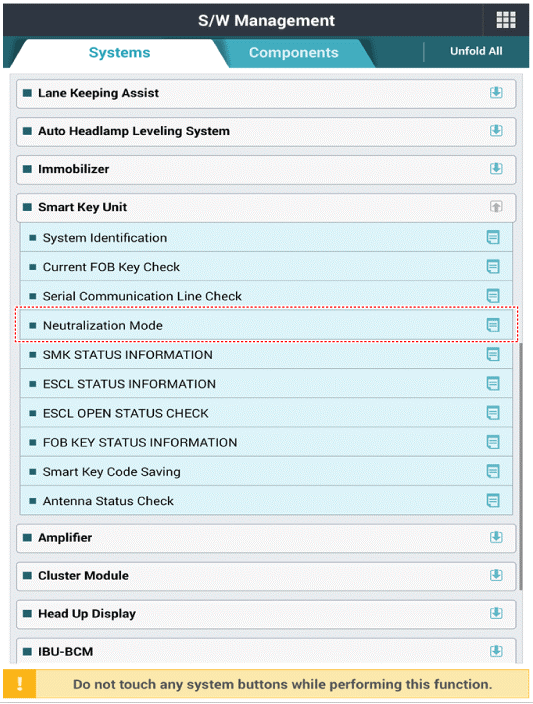

G16175125Courtesy of HYUNDAI MOTOR AMERICA

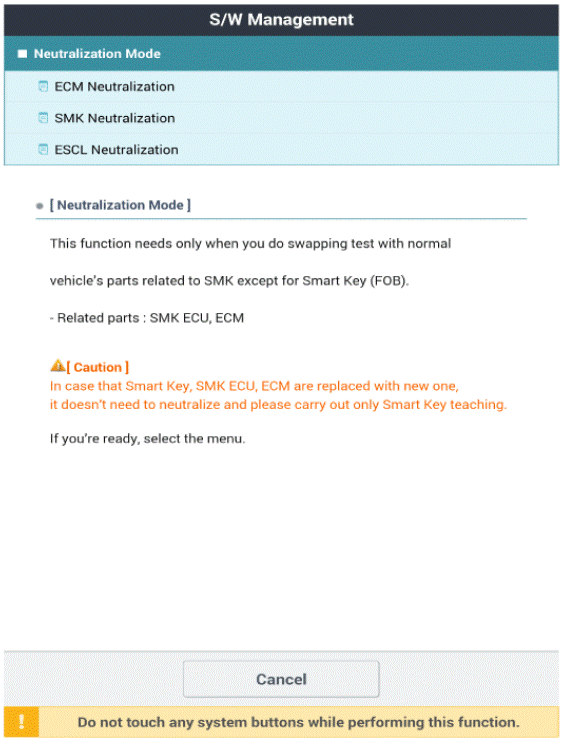

G16175126Courtesy of HYUNDAI MOTOR AMERICA
