Repair Procedures: Removal

CAUTION:
  1. After replacing with a new power tailgate module, check for DTC code at all times.

    If DTC code B24B0 exists, perform power tailgate mode change.

    (Refer to Power Tailgate Module - " TROUBLESHOOTING  ")

  2. After replacing with a new power tailgate module, perform the system initialization.

    (Refer to Power Tailgate Module - " TROUBLESHOOTING  ")

  3. Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim LH.

    (Refer to Body - " LUGGAGE SIDE TRIM REPAIR PROCEDURES  ")

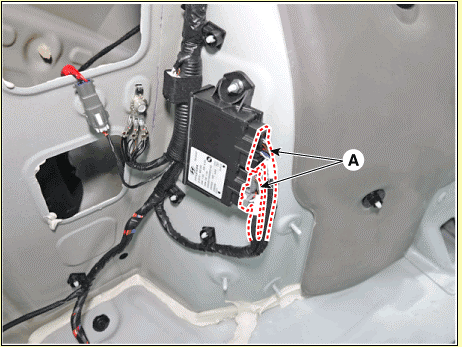

  3. Disconnect power tailgate unit connectors (A).
    G16175439Courtesy of HYUNDAI MOTOR AMERICA

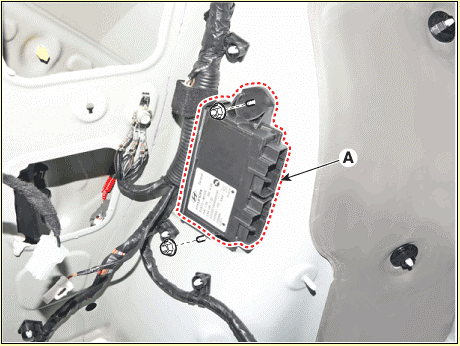

  4. Remove the power tailgate unit (A) after loosening mounting nuts.
G16175440Courtesy of HYUNDAI MOTOR AMERICA
