System Components

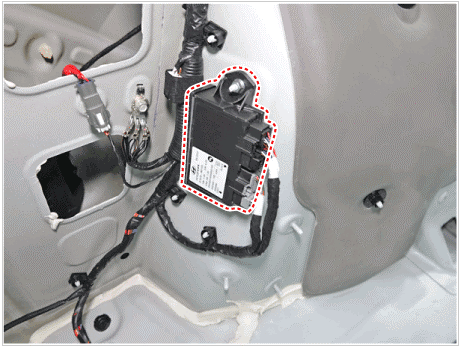

- PTG Unit
PTG unit is located in rear left luggage side trim.
PTG drive unit drive the two actuators (Spindles) by measuring the driving motors.
PTG unit also controls anti trap functions by hall sensor analysis in the anti-pinch strip.
- PTG Latch Assembly
Power latch is located in the lower part of tailgate panel.

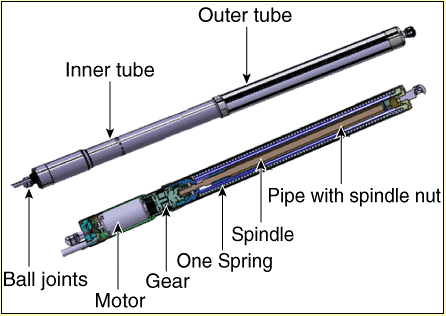

- PTG Spindle
PTG spindle open and close the tailgate by driving the motor.
- SMK (Smart key)
Push the power tailgate open of the SMK more than 0.5s to open the power tailgate. Power Open operation shall be reversed when an additional Open/Close signal is received during power opening.

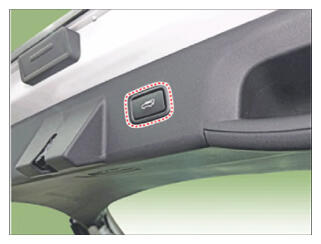

- Tailgate inner switch
- Tailgate buzzer
When a power operation cannot be performed as requested or an obstacle has been detected.
