[Bank 1/Sensor 2]

  1. Disconnect the battery nagetive (-) terminal.

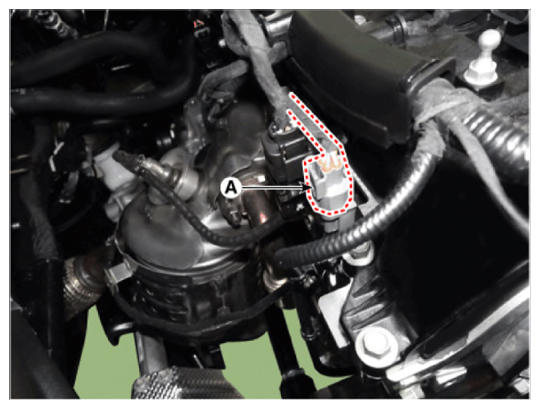

  2. Disconnect the heated oxygen sensor connector (A).
    G14676864Courtesy of HYUNDAI MOTOR AMERICA

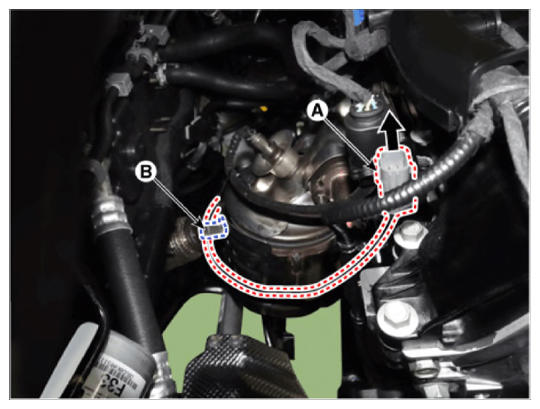

  3. Remove the connector (A) from the bracket and then disconnecting the wiring from the wiring mounting holder (B).
    G14676865Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the heated oxygen sensor using the special tool [SST No.: 09392-1Y100 or 09392-2H100] as shown below.

    Tightening Torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)

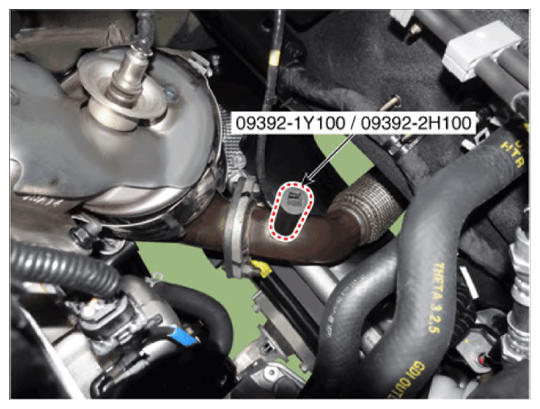

    Fig 1: Heated Oxygen Sensor Components Location [Bank 1/Sensor 2] With SST
    G14676866Courtesy of HYUNDAI MOTOR AMERICA
