Repair Procedures: Removal

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.

(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Turn the ignition switch OFF and disconnect the battery (-) terminal.

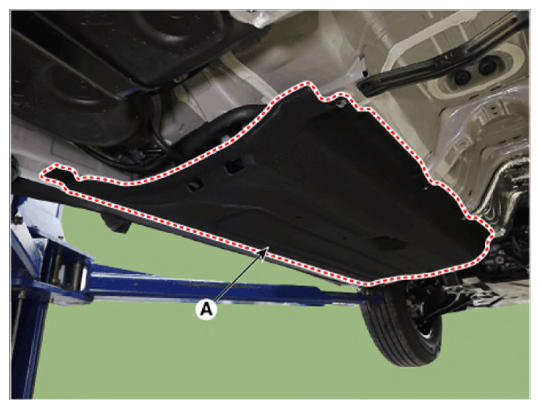

Remove the floor under cover (A).
Tightening Torque:

7.9 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

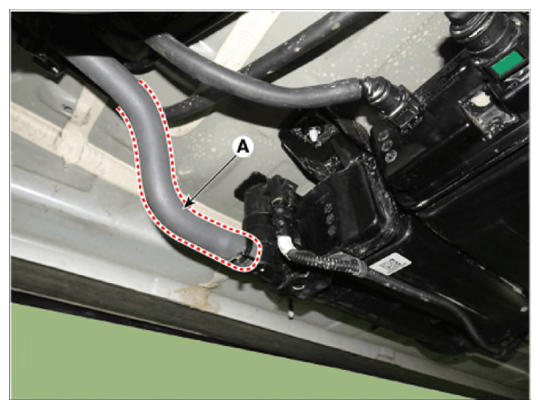

Separate the ventilation hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

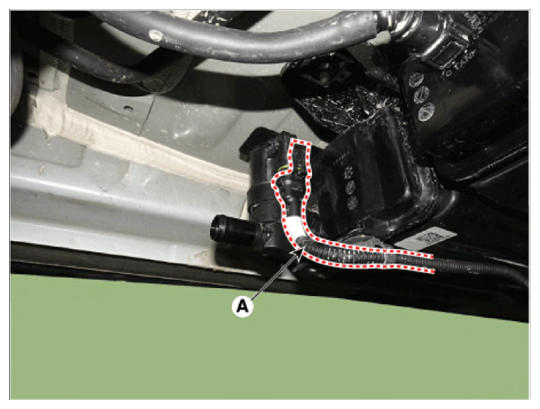

Disconnect the canister close valve connector (A).

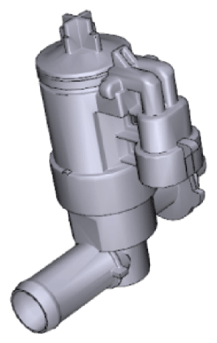

Fig 1: Canister Close Valve (CCV) Components Location
Courtesy of HYUNDAI MOTOR AMERICA

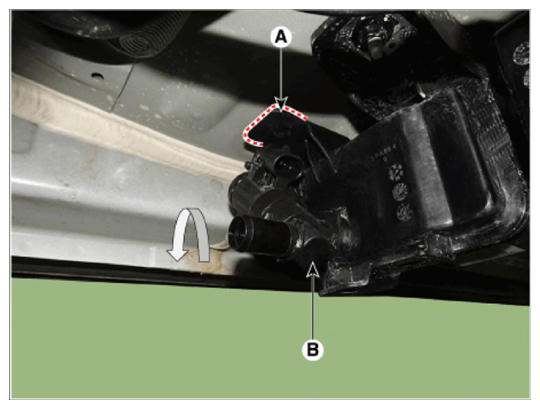

Lifting the fixed part (A) and then rotating CCV (B) 30 degrees in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
