Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

  3. Remove the front monitor.

    (Refer to AVN System - "FRONT MONITOR ")

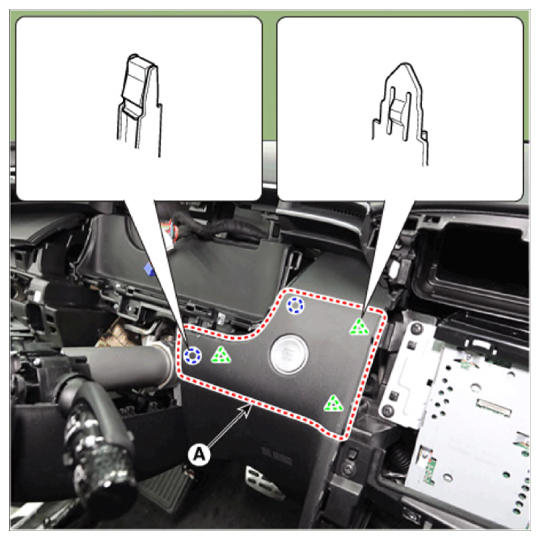

  4. Using a remover and remove the crash pad garnish [CTR].
    G14684714Courtesy of HYUNDAI MOTOR AMERICA

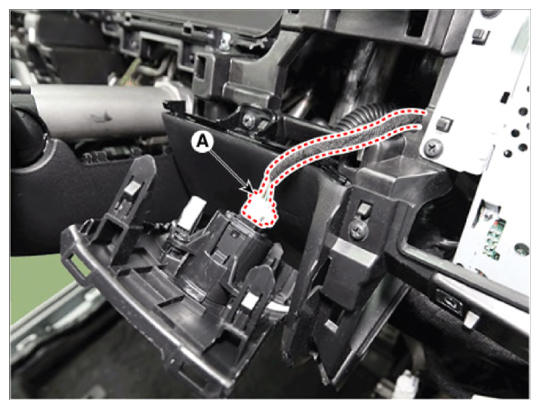

  5. Disconnect the start/stop button connector (A).
    G14684715Courtesy of HYUNDAI MOTOR AMERICA

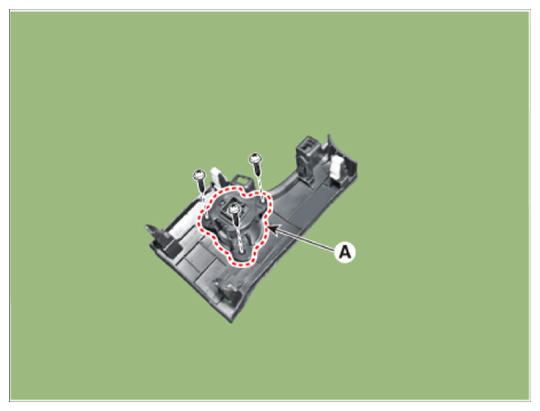

  6. Loosen the mounting screws and remove the start/stop button (A).
    G14684716Courtesy of HYUNDAI MOTOR AMERICA
