Repair Procedures: Removal
- Remove the coupling assembly.
(Refer to 4 Wheel Drive (4WD) System - "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

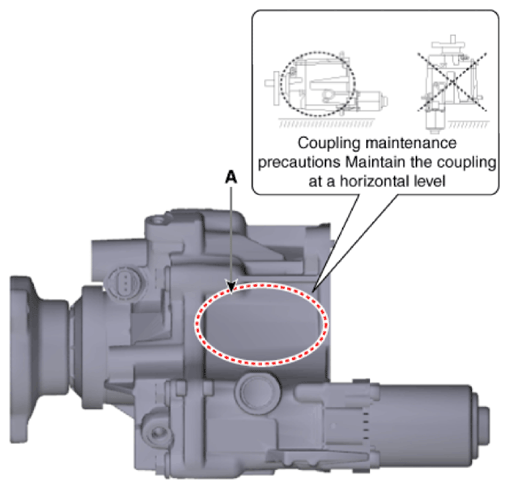

NOTE:- Keep it level with the sticker (A) on the top of the coupling.

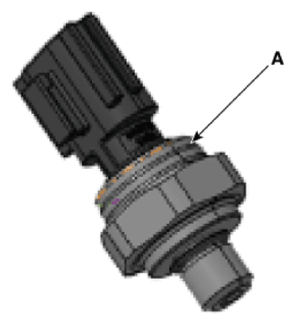

- Remove the pressure sensor (A).NOTE:
- Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:
10.8 - 14.7 N.m (1.1 - 1.5 kgf.m, 8.0 - 10.8 lb-ft)
