Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • Check the cleanliness of the pressure sensor before installation.

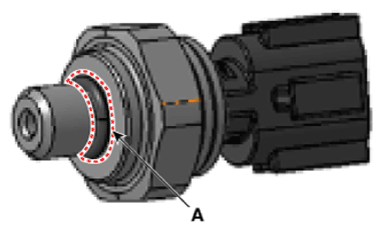

    • Check the pressure sensor O-ring (A).
      G14677396Courtesy of HYUNDAI MOTOR AMERICA

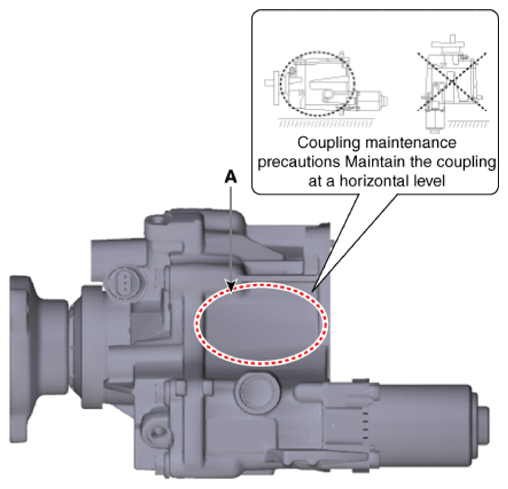

    • Keep it level with the sticker (A) on the top of the coupling.
    G14677397Courtesy of HYUNDAI MOTOR AMERICA
