Repair Procedures: Disassembly

  1. Loosen the paddle shift switch mounting screw (A).

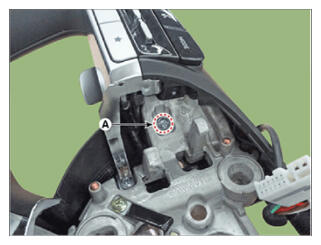

    G16121133Courtesy of HYUNDAI MOTOR AMERICA

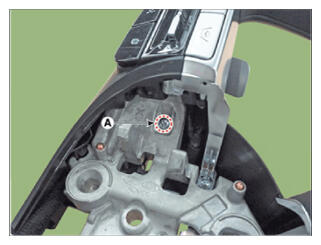

    G16121134Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the paddle shift switch (A) after disconnecting the connector.

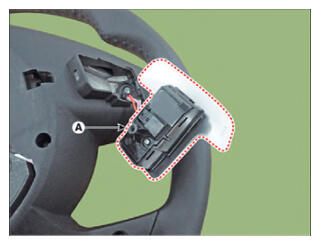

    G16121135Courtesy of HYUNDAI MOTOR AMERICA

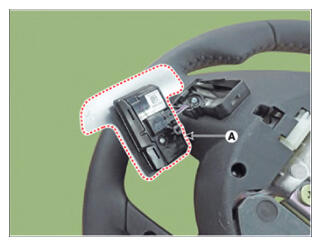

    G16121136Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the lower cover (A) after loosening the screw.

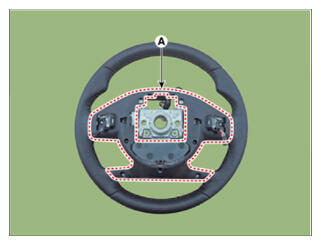

    G16121137Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the wiring (A).

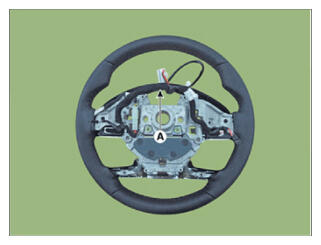

    G16121138Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering wheel bezel (A).

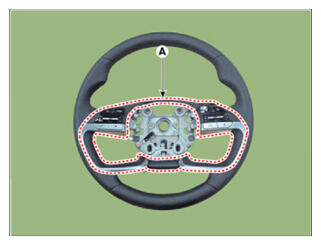

    G16121139Courtesy of HYUNDAI MOTOR AMERICA

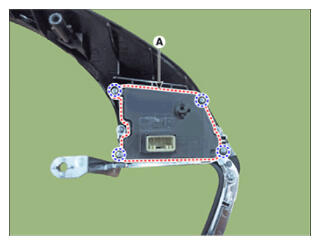

  6. Remove the remote control switch (A) after loosening the mounting screw.
    G16121140Courtesy of HYUNDAI MOTOR AMERICA

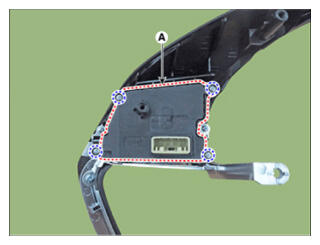

    G16121141Courtesy of HYUNDAI MOTOR AMERICA

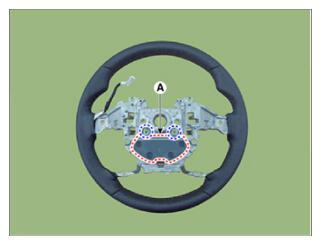

  7. Remove the steering wheel damper (A) after loosening the mounting bolts.
    G16121142Courtesy of HYUNDAI MOTOR AMERICA
