Repair Procedures: Inspection

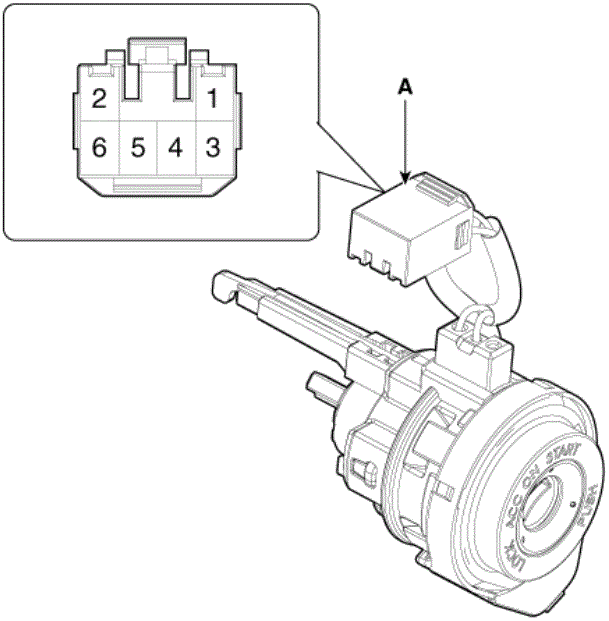

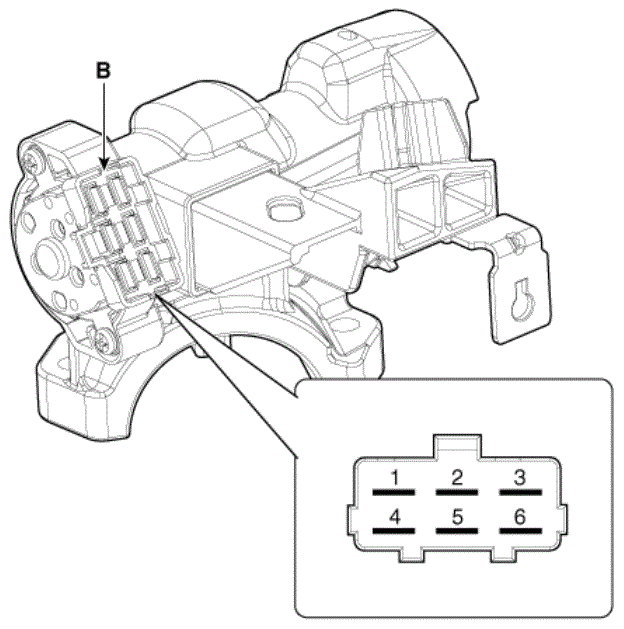

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G16124787Courtesy of HYUNDAI MOTOR AMERICA
    G16124788Courtesy of HYUNDAI MOTOR AMERICA

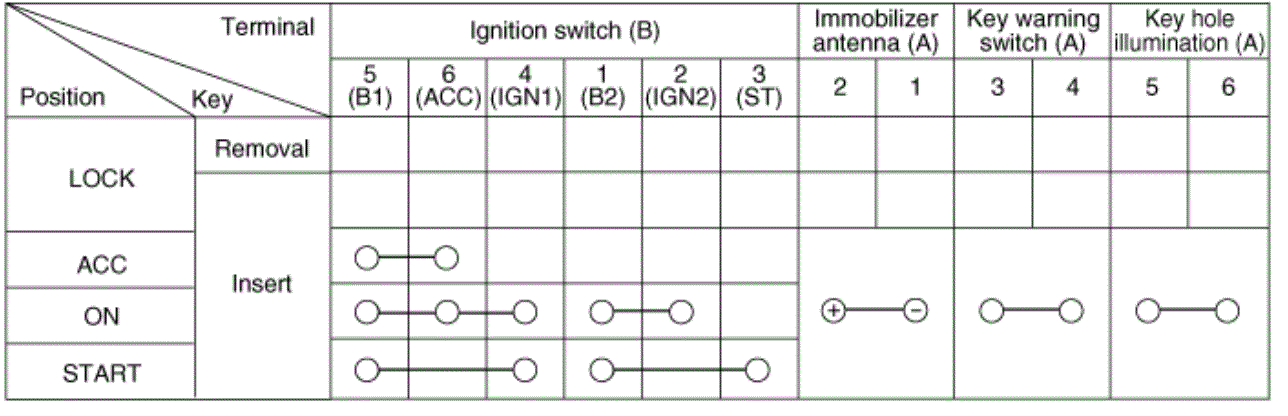

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G16124789Courtesy of HYUNDAI MOTOR AMERICA
