Driver Power Window Main Switch

  1. Disconnect the positive (+) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - " FRONT DOOR TRIM  ")

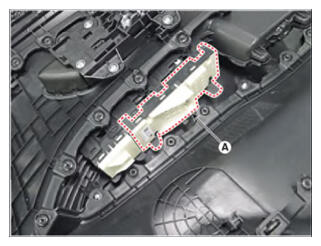

  3. Remove the power window main switch assembly (A).
    G16124513Courtesy of HYUNDAI MOTOR AMERICA
