Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

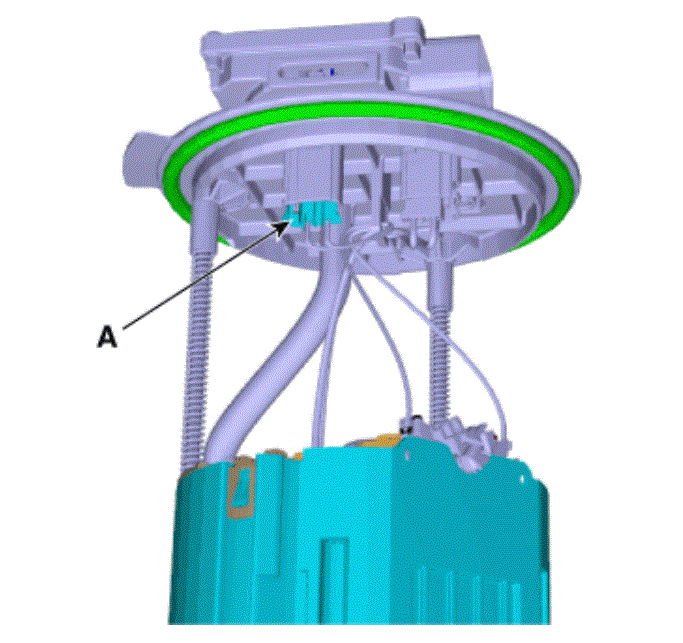

  2. Disconnect the fuel sender connector (A).
    G16146574Courtesy of HYUNDAI MOTOR AMERICA

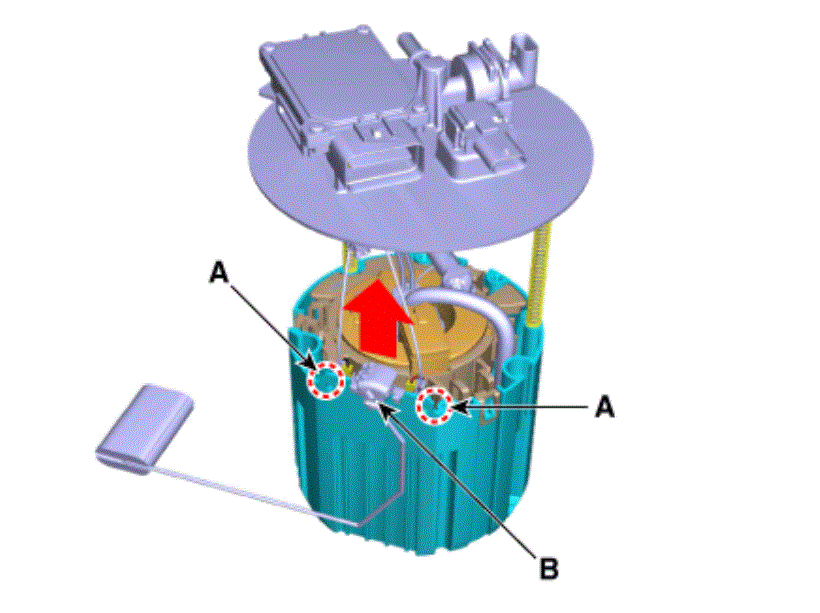

  3. Release the fixing hook (A) and then remove fuel sender (B) in the arrow direction.
    G16146575Courtesy of HYUNDAI MOTOR AMERICA

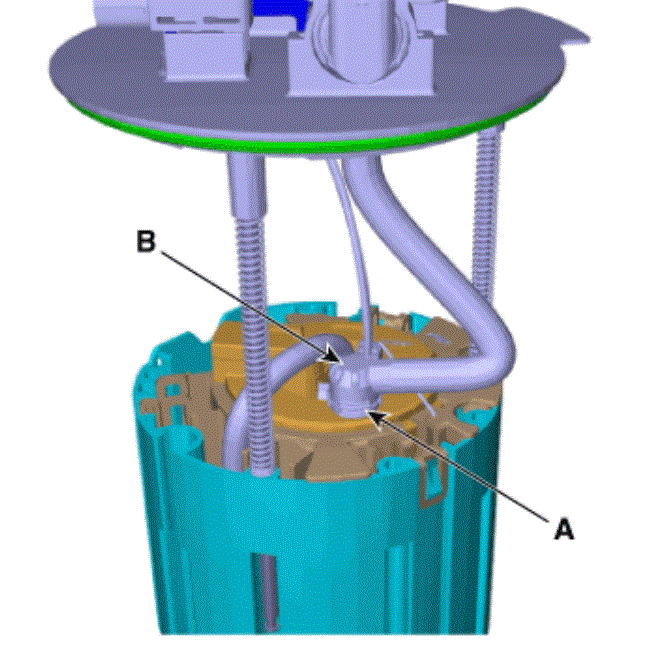

  4. Remove the fixing pin (A) and then disconnect the fuel feed tube (B).
    G16146576Courtesy of HYUNDAI MOTOR AMERICA

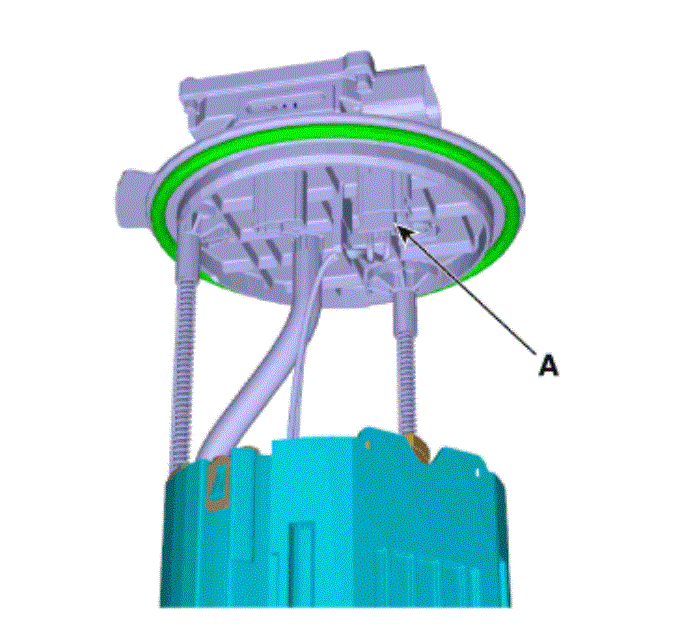

  5. Disconnect the fuel pump motor connector (A).
    G16146577Courtesy of HYUNDAI MOTOR AMERICA

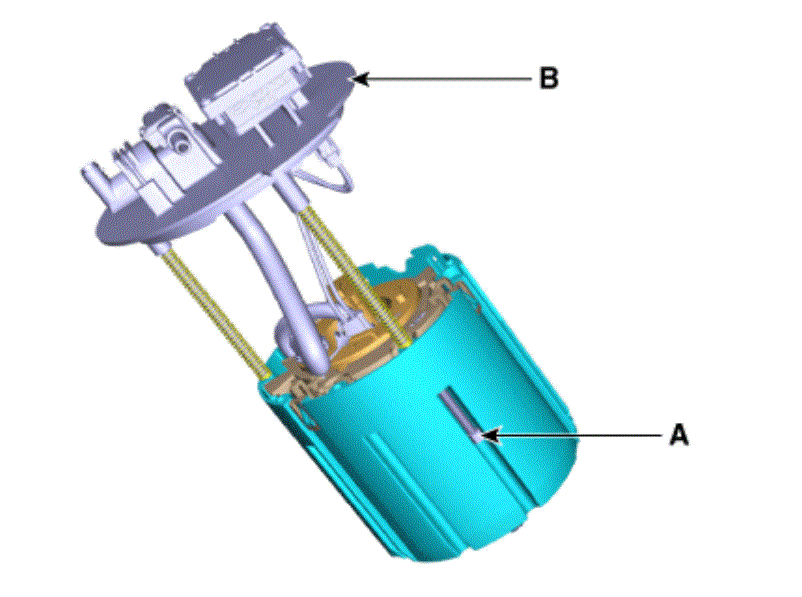

  6. Release the fixing hook (A) and then remove the head assembly (B).
G16146578Courtesy of HYUNDAI MOTOR AMERICA

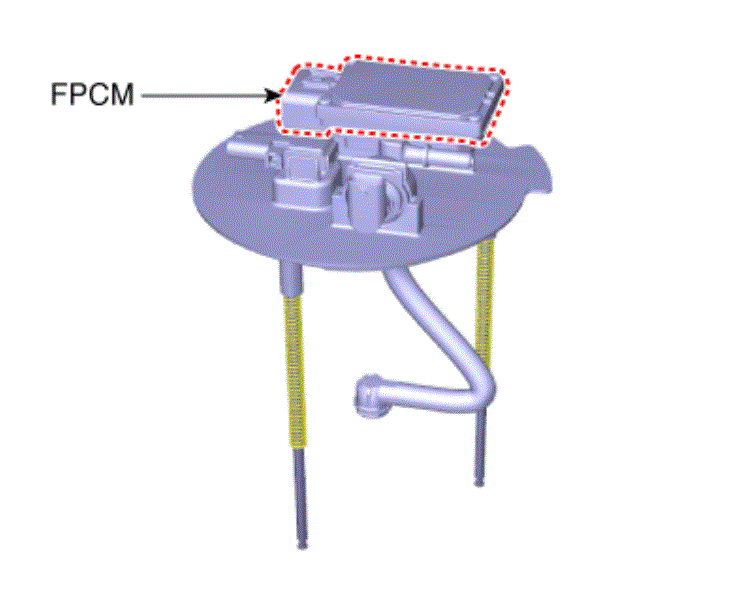

G16146579Courtesy of HYUNDAI MOTOR AMERICA
