Repair Procedures: Installation
- Install in the reverse order of removal.
NOTE:
- Do not reuse the high pressure fuel pipe.
- Do not deforming the high pressure fuel pipe.
- When tightening the nut, do not tilt the torque wrench.
- Install the component with the specified torques.
- Install the high pressure fuel pipe and then check the oil leakage.
NOTE:
- Do not reuse the mounting bolt.
- Do not reuse the injector fixing clip.

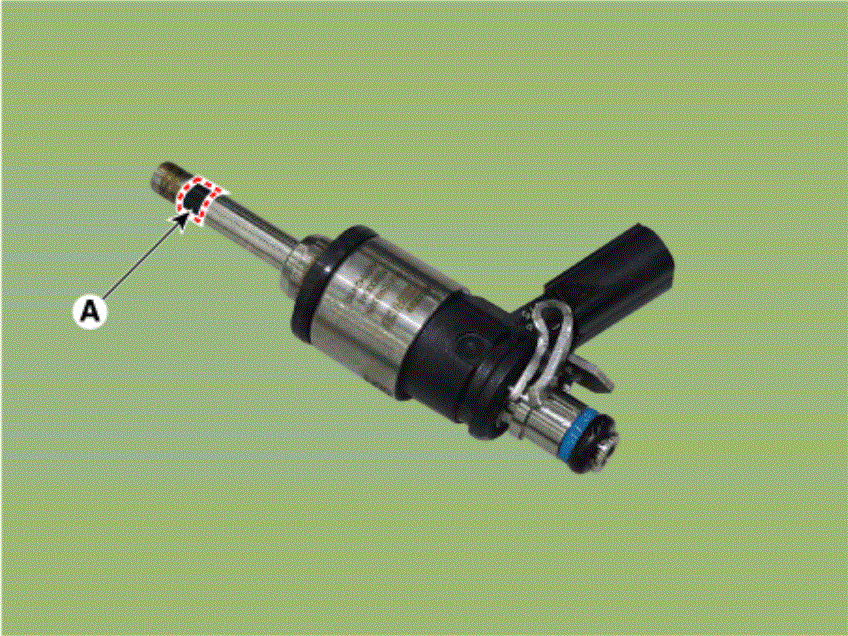

- Do not reuse the combustion seal (A).
- Be careful not to apply oil to combustion seal.

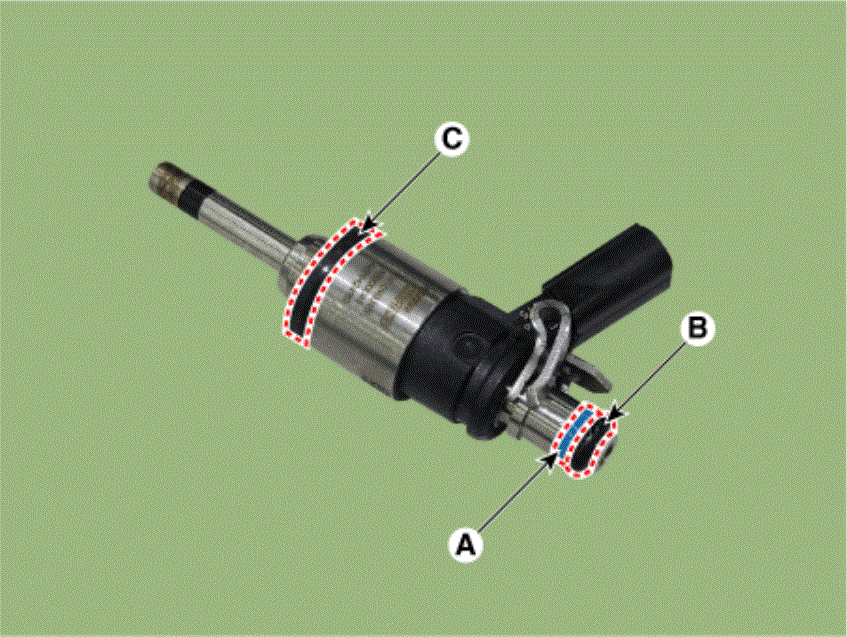

- Do not reuse the O-ring (A), support disk (B), rubber washer (C).
- When replacing the rubber washer, the steal plate part should be faced the cylinder installation part and the rubber plate part should be faced the injector body part.
- Apply the engine oil to the injector O-ring.
- When inserting the injector, be careful not to damage the injector tip.
