Repair Procedures: Removal
CAUTION:
Handling wireless charging system parts by wet hands may cause electric shock.
- Disconnect the negative (-) battery terminal.

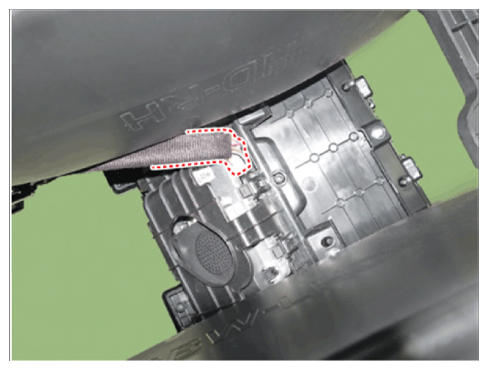

- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Disconnect the wireless charging unit connector (A).

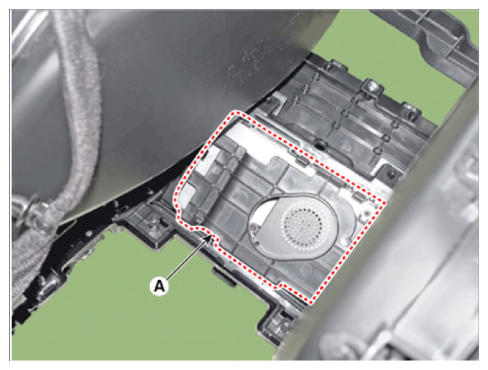

- Remove the wireless power charging unit (A).
