Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
2. Remove the battery.

   (Refer to Charging System - "BATTERY ")

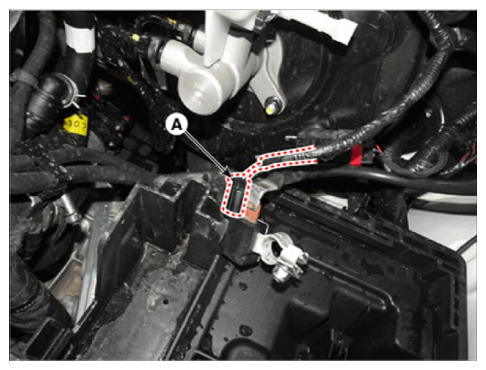

3. Disconnect the battery sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

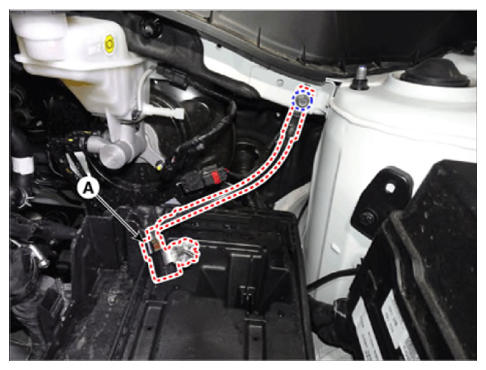

4. Remove the battery sensor (A).

Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
